FlashForge Adventurer 5m (AD5M) Hot end retainer with fan duct (silencer)

**UPDATED::

07/11/25

- Attempted to add FF logo =). Loaded it as a .3mf since I added it in slicer.

07/04/25

- Adjusted the fan muffler angle and depth for better fit to hot end

- Cut lateral piece thickness down for better clearance and flexibility

- Adjust muffler fitment to clip. Now it clips on the 2nd slot up from the bottom like the original clip was intended.

_________________________________________________________________________________________________________

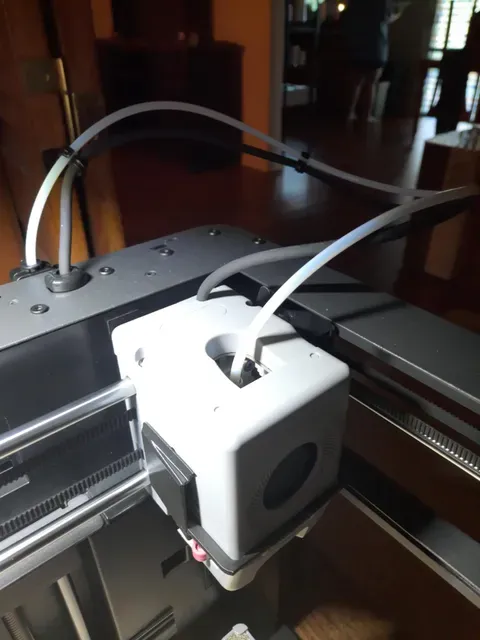

Welcome to a mashup of two very useful prints for the AD5M.

If you're ever had you hot end fan knocked off, you know how easy it can pop off. The clip is just an extra precaution against accidents.

Our AD5M fans also supply us with a lovely shrill tone hence the shielding to disrupt it.

I loved the idea of the silencer but wanted it a little bigger and didn't want to tape it on to my hot end so I attached it to the retainer hook for easy removal and no sticky stick.

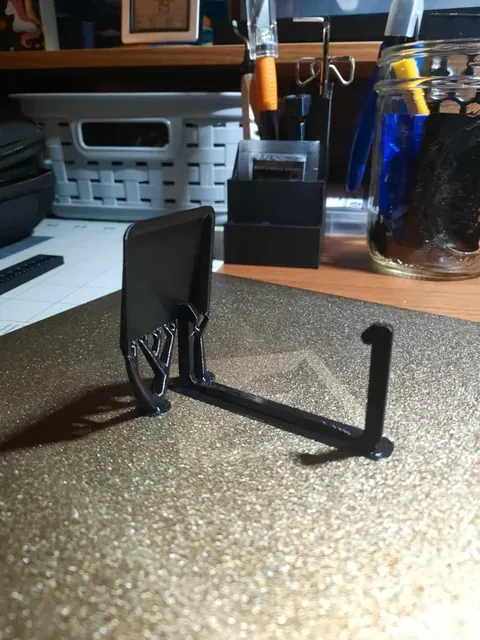

The .3mf file is already oriented with the settings I used to print like the photo shows.

I printed this in PETG / 0.2 layers 0.25 initial / 5 walls / Supports and brim

<3 to Luigisvc & John Robinson
