3D Printer LED Lamp and DimmerBox-Top

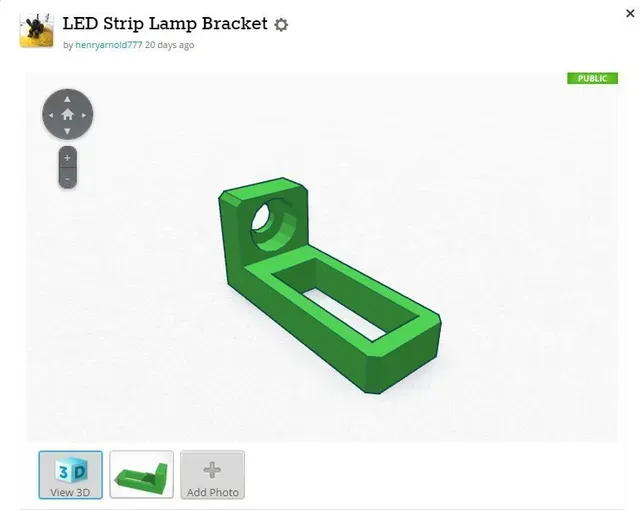

This is an LED Strip Lamp for 3D Printers. It works especially well on aluminum extrusion style Prusa i3 Printers but can be attached to almost any printer.. The design includes brackets for the lamp and a custom box for the dimmer. You must drill holes in the two box end pieces for the wires and adjustment control. Be sure to print two end pieces for the box and two brackets for the LED lamp.

Customized version of http://www.thingiverse.com/thing:1264391

Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing_id=1264391

This is the dimmer I used: http://www.amazon.com and then search for "B00HTZZF9A"

And this the LED Lamp: http://www.amazon.com and then search for "B006JKCZRQ"

Instructions

Using the following options:

Height = 32

TShell = 1

Width = 55

Police = Arial Black

Round = 3.1

Text = 0

BPanel = 0

txt = HeartyGFX

m = 0.6

Thick = 2

Length = 75

BShell = 0

FPanel = 0

Resolution = 50

TxtSize = 3

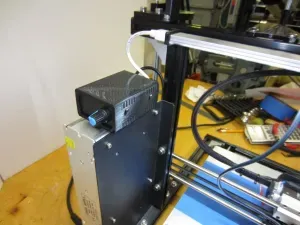

The dimmer is wired from your 12V power supply to the input and from the LED strip to the dimmer output. Be sure to observe the polarities.

Category: 3D Printer Accessories
