Multiconfiguration WAGO Junction box 2

Multiconfiguration WAGO Junction Box V2 – Waterproof and pole mountable

This is the next-generation version of the original Multiconfiguration WAGO Junction Box – now upgraded with robust new features to meet real-world demands.

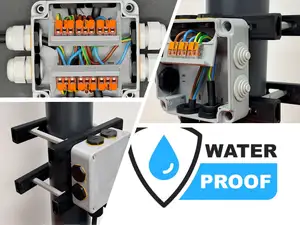

Check FREE model here to see if it fits your needs.

https://www.printables.com/model/1348511-waterproof-junction-box-2-free

🔧 Key Features:

Waterproof Design (with test video): Fully sealed housing, tested and verified to keep your connections dry. Ideal for outdoor or harsh environments.

In order to achieve a proper seal we designed 3D prined TPU gaskets either for lid or the glands. It is recommended to use TPU 95A filament.

All gaskets can be printed separately and then inserted into the lid or onto the gland.

Can't print TPU? No problem!

For glands - Use out of shelve metric size M12/M16/M20 gland gaskets.

For the lid - Use silicone foam gasket:

https://www.amazon.de/Estresen-Silikon-Schaumstoff-Dichtungsstreifen-Schaumstoffstreifen-selbstgemachte-Schaumstoffschl%C3%A4uche/dp/B0D65NM87H?source=ps-sl-shoppingads-lpcontext&ref_=fplfs&smid=A3F9BH0X6OK0HQ&th=1

3D-Printed Screwed Lid: Now includes print in place fasteners – no extra hardware needed. Keeps everything secure and easy to assemble.

Supports M12 / M16 / M20 Cable Glands & Grommets: Compatible with standard cable gland sizes, allowing you to tailor the box to your wiring setup.

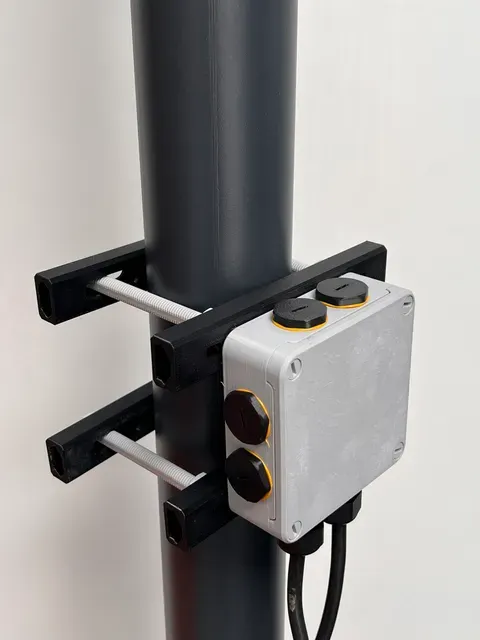

Pole Mount Ready: Designed with optional pole-mount brackets – perfect for sensor nodes, CCTV, or outdoor installations.

- Use 3D-printed rails and screws to attach the junction box to the pole. The parts are printed flat, which makes them both strong and flexible—essential qualities for mounting securely without cracking.

Integrated Cable Tie Points: Built-in hooks to organize and secure your wiring using zip ties directly inside the box.

🧰 Perfect for:

WAGO 221 terminal blocks

Smart home wiring

Outdoor sensor nodes

Custom electronics projects

Industrial prototyping and field setups

This model brings the functionality, flexibility, and ruggedness needed for real-world installations — all in a fully 3D-printable package.

1X1

2X1

2X2

3X2

3X3

4X2

4X4

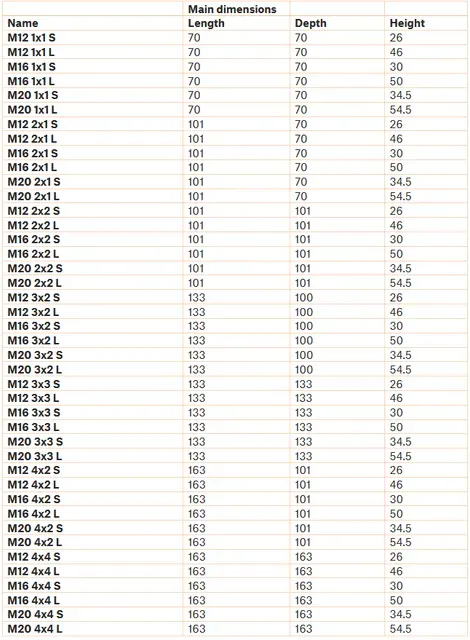

Check dimension list of all the sizes available:

Main dimensions

Name Length Depth Height

M12 1x1 S 70 70 26

M12 1x1 L 70 70 46

M16 1x1 S 70 70 30

M16 1x1 L 70 70 50

M20 1x1 S 70 70 34.5

M20 1x1 L 70 70 54.5
