AnyCubic Kobra S1 Bed Carrier upgrade

Площадка: Printables
Цена: Бесплатно
Лицензия: CC-BY-NC; Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы: STEPDXF

42 Лайки
406 Загрузки
1 Напечатали
16 Комментарии
3 530 Просмотры

Автор:djos_1475

Опубликована 14.07.2025

Скачать на

Printables

Описание

AnyCubic Kobra S1 Bed Carrier upgrade - use:

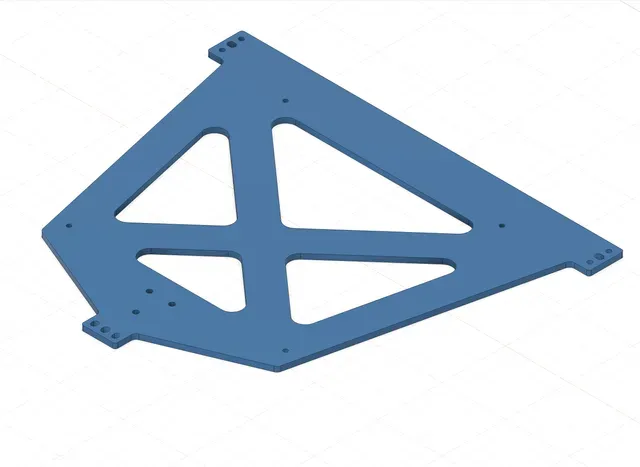

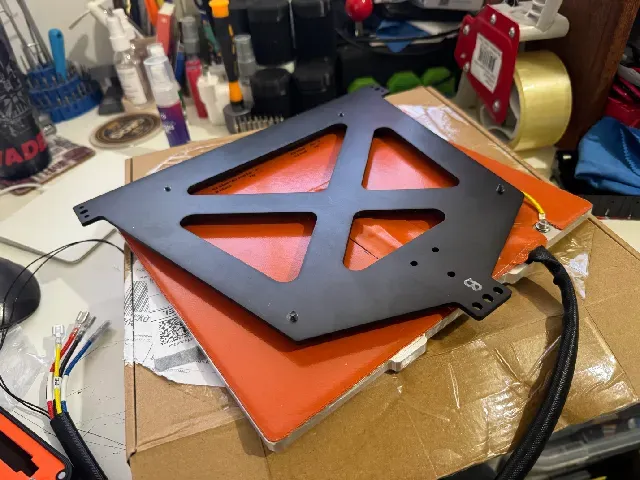

- 4mm thick 3K Carbon fibre for the CF version - 4mm thick 7075 Aluminium, or Mild Steel for the Metal version The squarish CF version is my design, the more triangular Metal version is by @Kanrog and is provided here for easy access.

- Both versions require 8mm tall, metal, M4 spacers to mount the bed and provide clearance for the wiring. - The CF version is intended to use M4 RivNut's to provide mounting (you can't put threads into CF). - The Metal version needs to be tapped for M4 in the 4x bed mounting holes

Updates

- CF Bed Carrier v3 - improves with larger fillets and a few tweaked dimensions. - AC_KS1_BED_FRAME_V3 v1 - DXF file added
