Voron 2.4 X Carriage Eddy for StealthBurner HF/UHF

Description

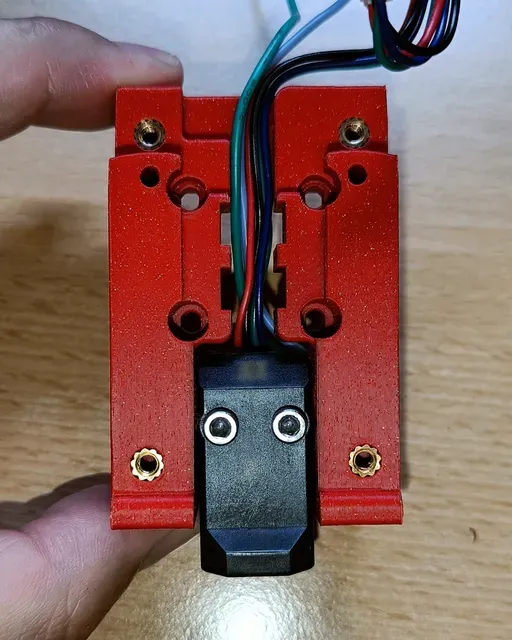

This is a custom X-carriage designed specifically for the BigTreeTech Eddy Bed Level Sensor , based on the original Voron 2.4 X-carriage .

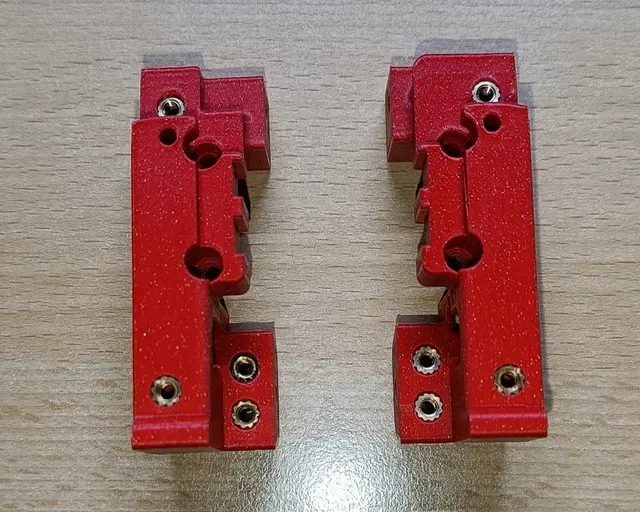

Instead of the standard probe mount slots, this remix uses insert nut positions , allowing you to mount the Eddy probe either higher or lower — depending on your hotend setup ( HF / UHF → V6, Volcano ).

The result: the Eddy probe sits 2.5 mm above the nozzle tip , which appears to be the optimal offset for reliable operation.

Personal Tip

When calibrating Eddy with Klipper :

- Set the current to 16

- Preheat your bed to a moderate temperature and let it settel for a few minutes before probing

This improves probe consistency across different bed temperatures. I personally recommend using Eddy only for mesh generation , and relying on your hardware Z endstop or Voron Tap for general homing.

Note: If you're using a magnetic Hall sensor as your X endstop, you'll need to add a hole for the magnet — the screw position has shifted slightly compared to the stock design.

Klipper Config:

[probe_eddy_current eddy] ... reg_drive_current: 16 x_offset: 0 y_offset: 21.5 z_offset: 2.5 ... BOM (Bill of Materials)

- 8× M3×5×4 heat-set inserts

- 2× M3 nuts

- 2× M3×30 mm socket head cap screws (SHCS)
