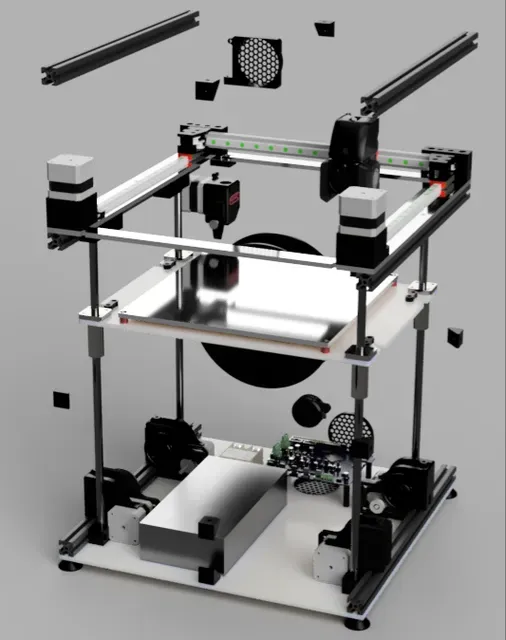

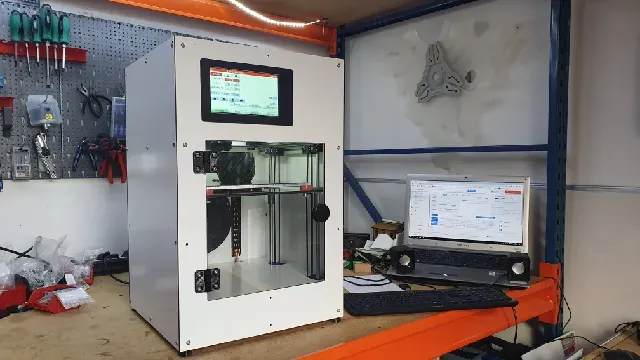

CorEssentials CoreXY 3D printer

CorEssentials is an open source corexy 3D printer.

- Built Volume: 240 mm x 250 x mm x 250 mm

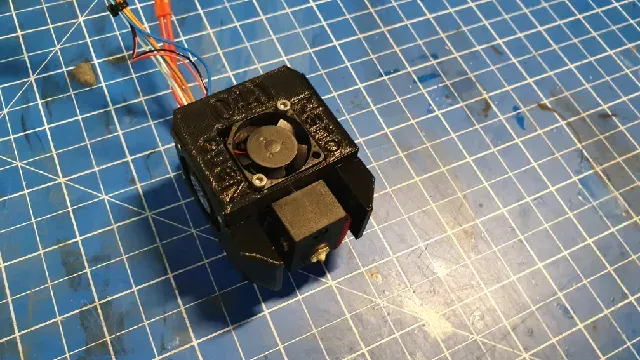

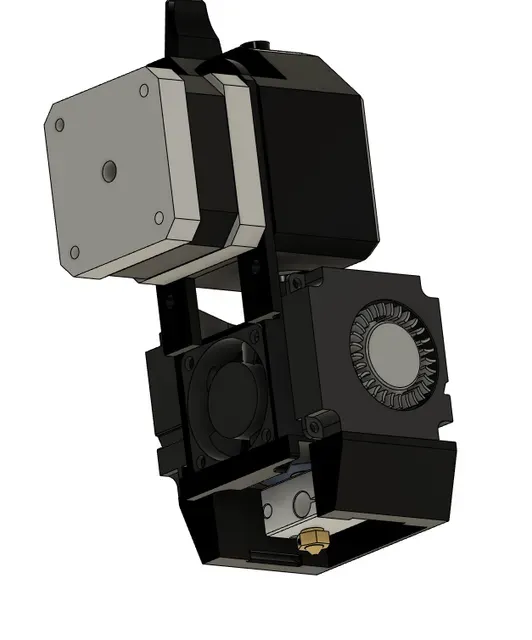

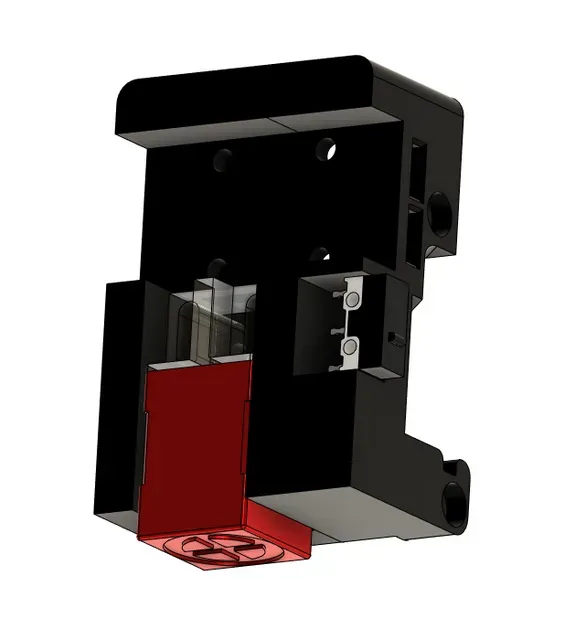

- Hotend: E3D V6 0.4mm (Bowden & direct available)

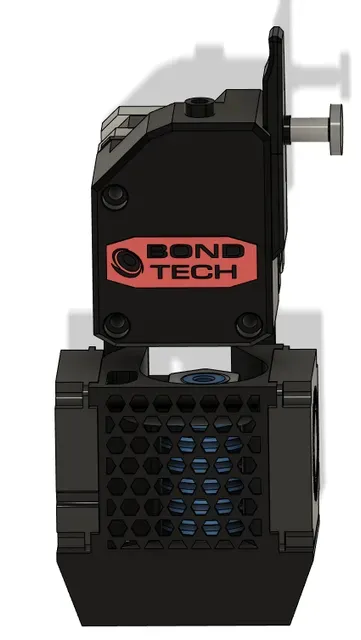

- Extruder: Bondtech BMG

- Built Plate: Magnetic Spring Steel with PEI or Pertinax

- Heated Bed: 230V, 600W silicone heater up to 120°C

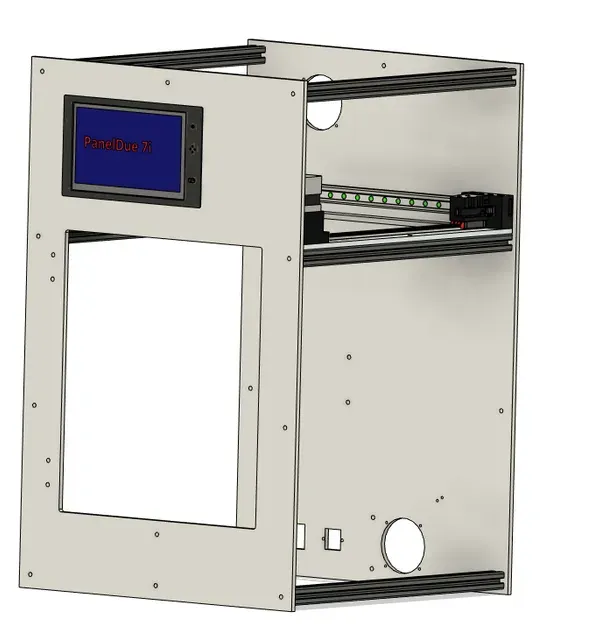

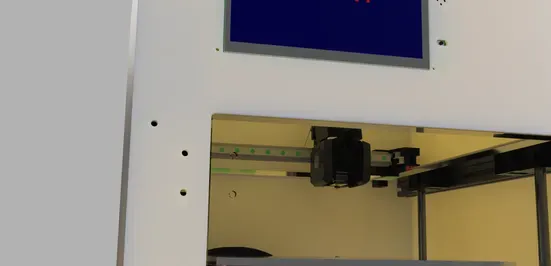

- Connectivity: 7" Touchscreen, USB and Ethernet

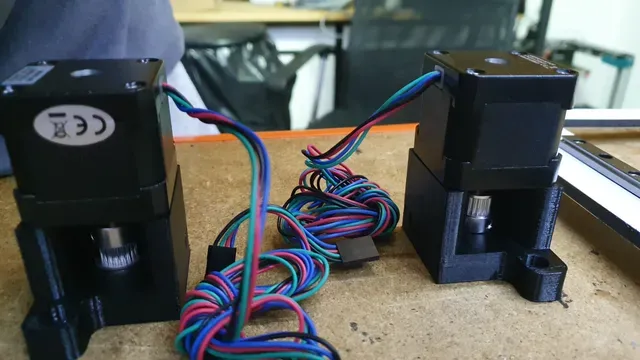

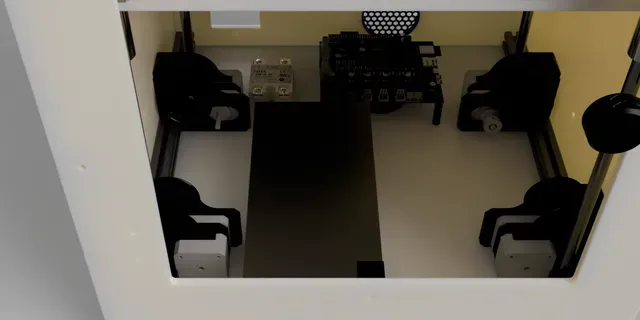

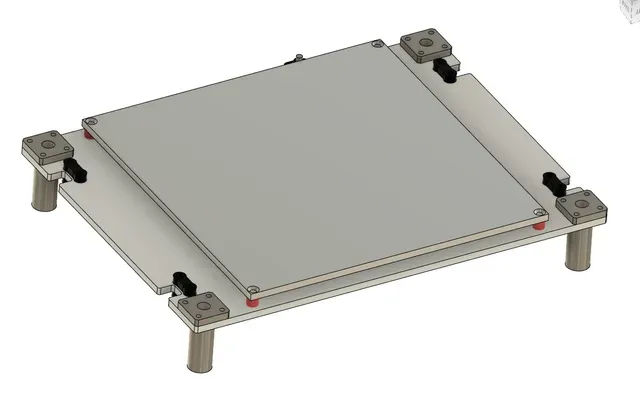

- Bed Leveling: Hardware bed leveling with 4 independent motors

- Filament runout sensor

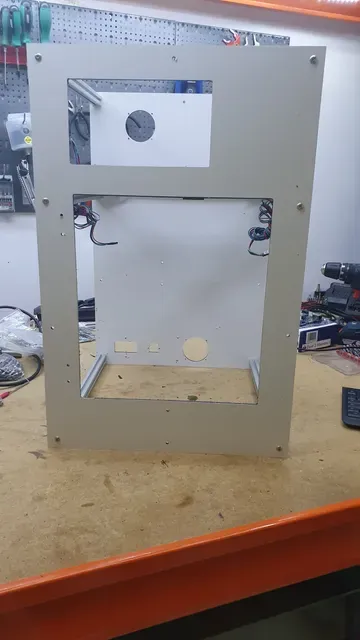

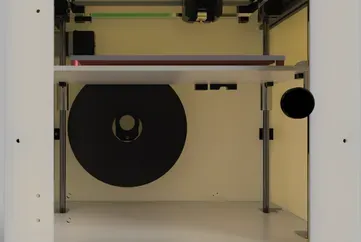

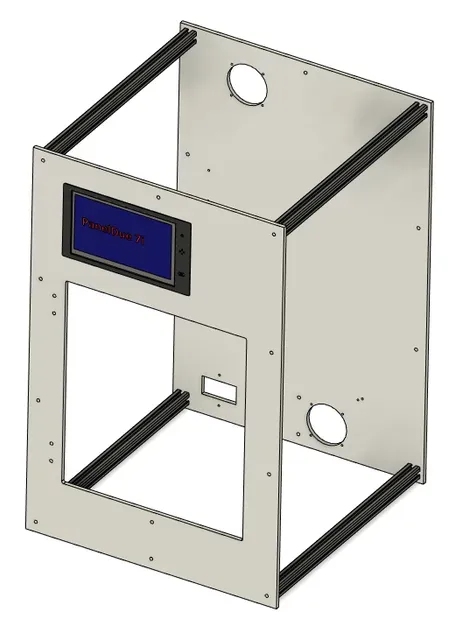

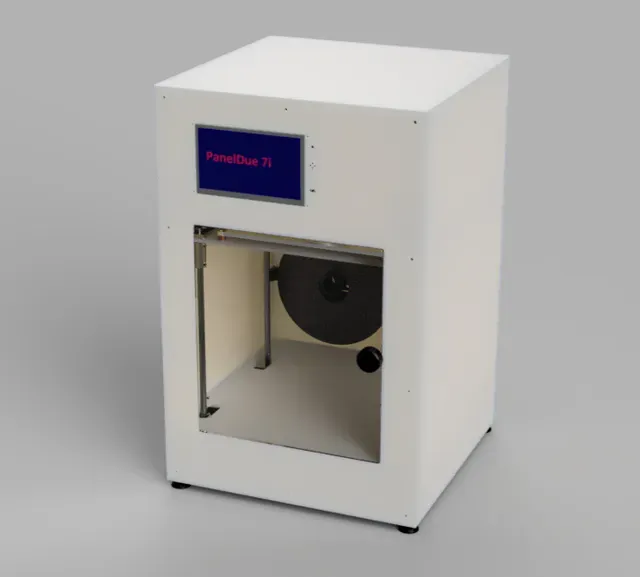

- Enclosure: Completely enclosed print volume with active temperature regulation and passive heated chamber (through heated bed), LED illumination

- Open for all Filament

- Filament Diameter: 1.75mm

- Supported Filament: ABS, ASA, PC, Nylon, PETG, PLA, PP, HIPS and much more // carbon and particle filled filaments possible with different toolhead

- Controller: Duet 2 Maestro with a total of 7 stepper drivers

- Heated bed: KEENOVO 230V 600W heater

- Power Supply: Meanwell 24V 10A

- Coldend cooling: 2510 axial fan

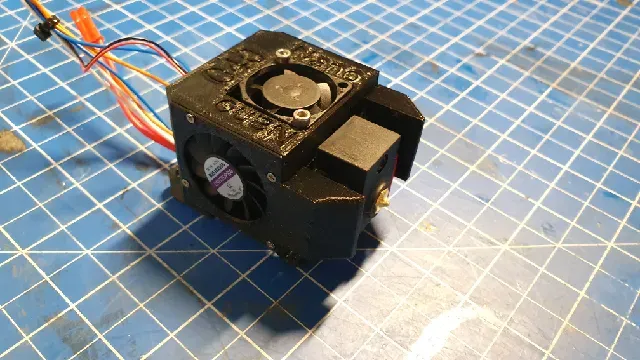

- Part cooling: 2x 3510 blower fan

- Chamber filtration: 6025 axial fan

- Electronics cooling: 2x 6025 axial fan

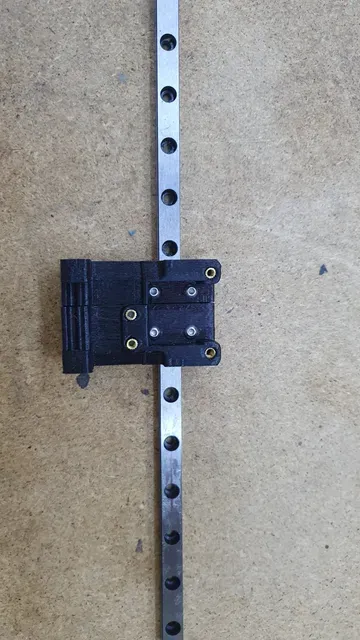

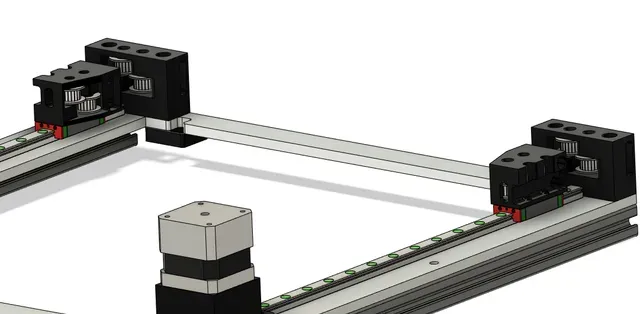

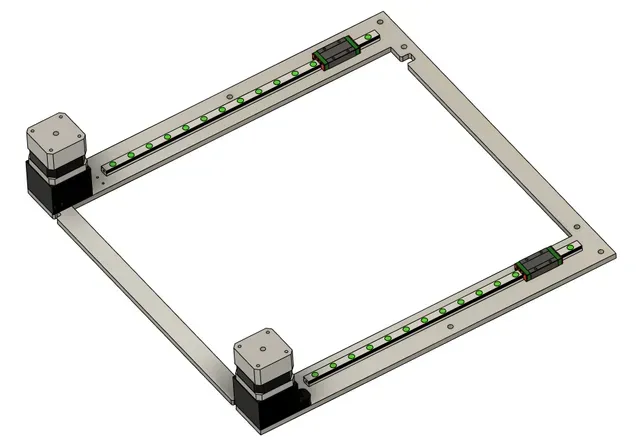

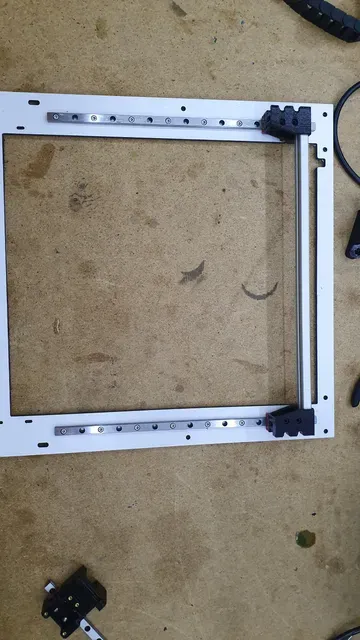

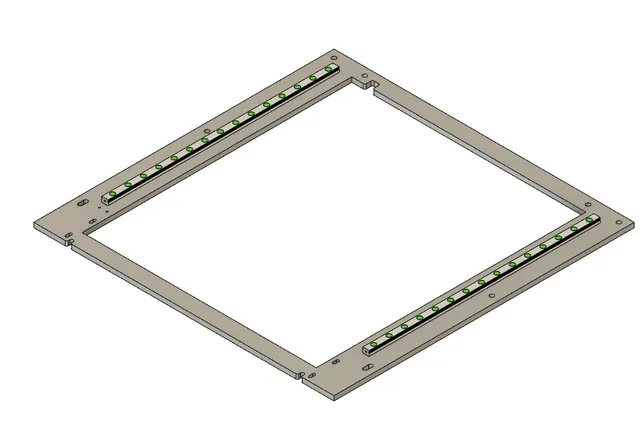

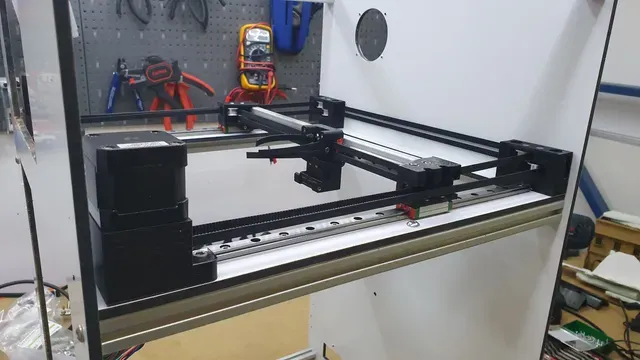

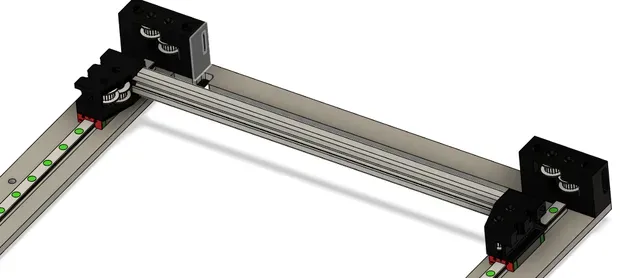

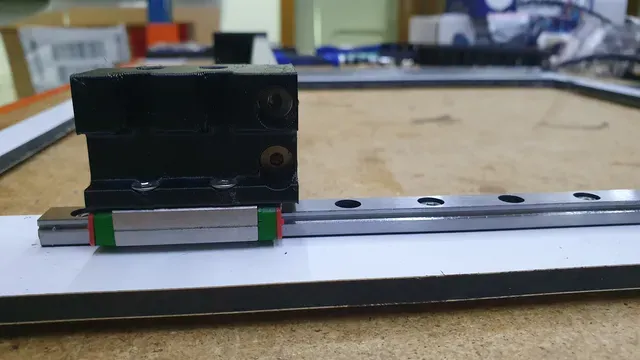

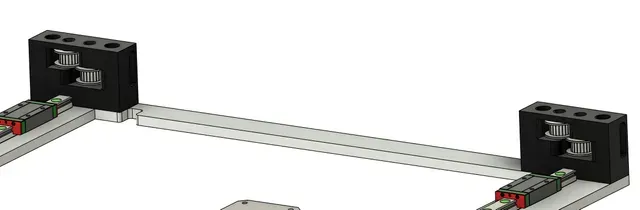

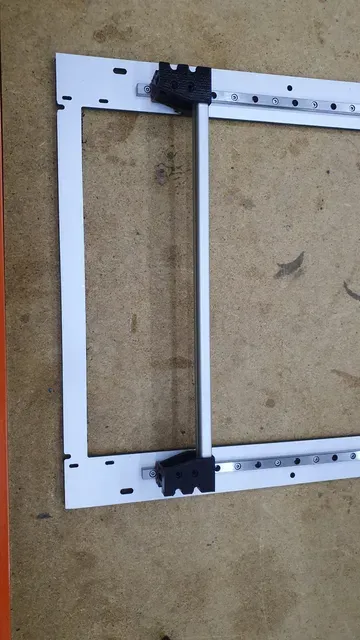

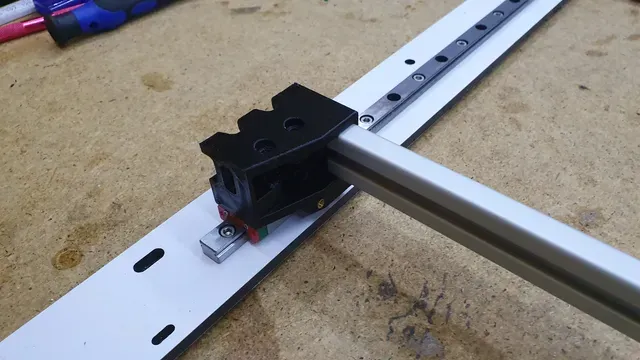

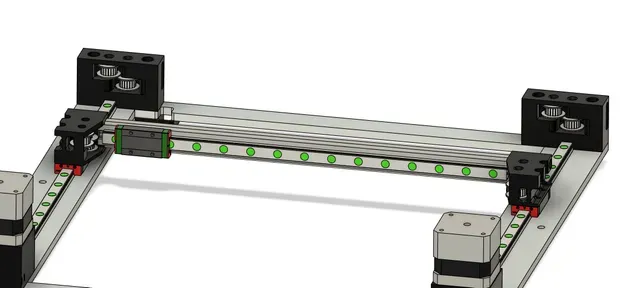

- Linear Motion: CE MGN9H for xy gantry and 10mm rods for z

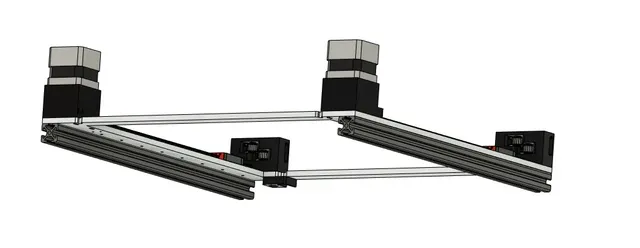

- Belt driven z axis

- Completely open source: all Fusion 360 files and .stp assembly available

Find the Fusion360 model for your viewing pleasure here:

https://a360.co/2q4ACzH

For the most current file visit the GITHUB:

https://github.com/MacNite/CorEssentials
