Labels for Korry Switch A320 - V2

🔧 Important: To achieve crisp, readable lettering, a 0.25 mm nozzle is required . Larger nozzles (like 0.4 mm) will not render the fine details of the raised text properly.

🧩 Two printing methods: Requires 0.25 mm nozzle for best results.

- Multi-material (MMU/AMS/XL) Designed for printers with multi-material capability (like Prusa MMU, Bambu AMS, or XL with multiple toolheads). Simply assign the base (black) and text (transparent) materials during slicing. Backlighting will shine through the letters.

- Single-material with post-processing Print the label in transparent filament Spray it with black paint Gently sand the surface with fine sandpaper or polishing paper to expose the raised text This creates a professional-looking, backlight-compatible label using any FDM printer. Based on this method: 👉

Labels are sized to match this switch model: 👉 [ https://www.printables.com/model/1363411-korry-switch-a320-v2 ]

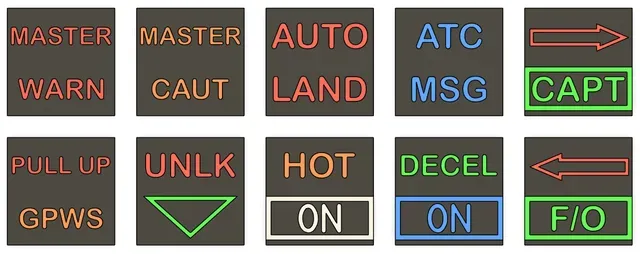

The label set includes commonly used A320 Korry texts (ENG, APU, GEN, etc.). More labels can be added or requested.

🚀 A320 Overhead panel

https://www.printables.com/model/1373123-a320-overhead-panel-lights-apu-more
