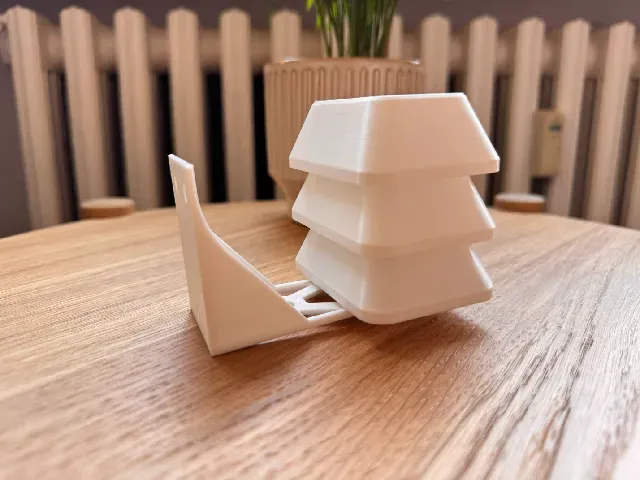

Stevenson screen for the SwitchBot outdoor sensor

I really like the SwitchBot outdoor temperature and humidity sensor as it is, but I don’t have any shaded area to place mine. As a result, direct sunlight affects the readings and makes it unreliable.

To solve this, I designed a simple Stevenson screen to provide shade. My goal was minimal print time and a solution that’s as close to 100% 3D-printable as possible. The only extra parts you’ll need—besides the SwitchBot sensor itself—are two screws for wall mounting. Everything else is 3D-printed without the need for supports.

I printed all parts with 100% infill, using a 0.4 mm nozzle and 0.10 mm layer height. The tolerances are fairly tight, so the more precise your printer, the better the final result.

The Stevenson screen consists of: - 1x base. - 2x middle segments. - 1x top segment. - 2x Screws.
