Prusa Enclosure V2 Buddy3D Camera Mount

For those of us still "rocking" the DIY Ikea LACK based Prusa Enclosure V2 for their Prusa i3, I have updated the “Prusa_MMU_enclosure_corner_top_front_right” part of the U-frame assembly to include a mount for the Buddy3D camera.

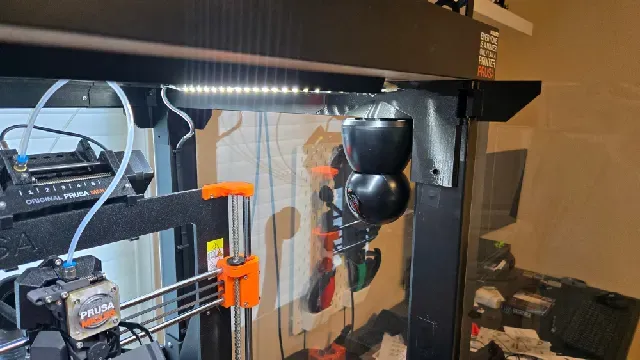

This mounts the Buddy3D camera at the top right front corner of the enclosure tucked behind the frame leg. I designed it to be very close to the corner with about 6.5mm clearance between the face of the USB-C connector and the corner bracket leg brace at its closest point. You will need to use a flat style 90 degree USB-C cable similar to something like this one. You connect the cable to the camera first and then rotate it to lock it into position.

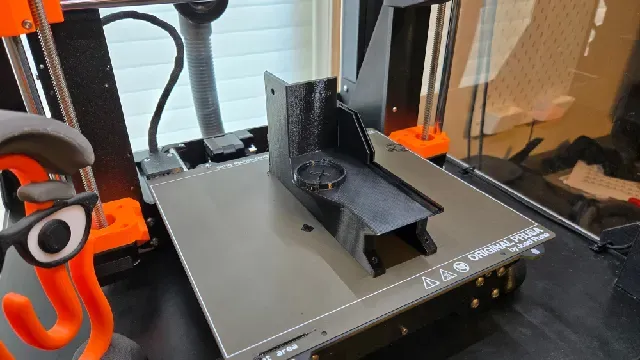

Printing is pretty straight forward and follows the settings from the original…PETG 10% infill and turn on supports “For support enforcers only.” The example was printed in Prusament Jet Black PETG with the "0.20 mm Speed" profile.
