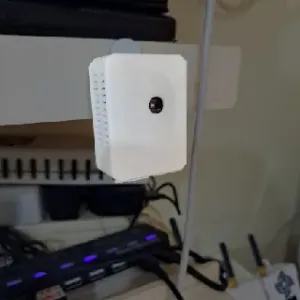

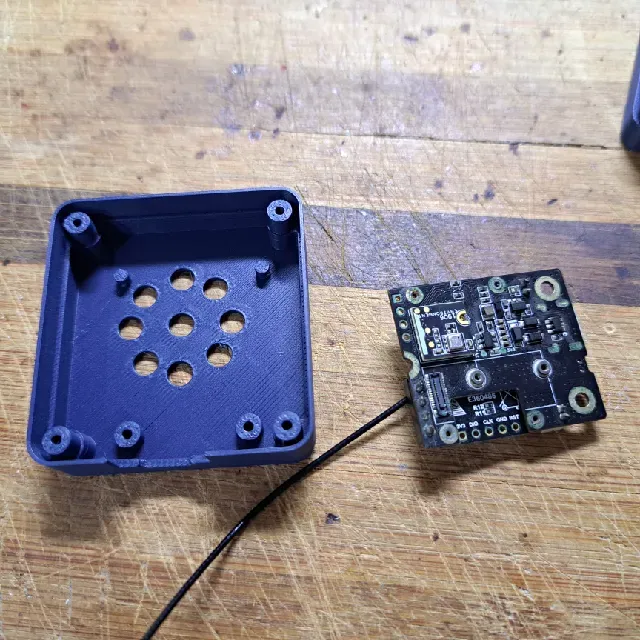

RAKwireless RAK19003 Mini Sensor Enclosure

A small enclosure for an indoor sensor. Only 48 x 51 x 22 mm (w x l x h) small, with enough space for a RAK19003 Base Board, a WisBlock Core module and up to 2 sensor modules. Easy access to the USB port and space for a 500mAh battery.

Supported WisBlock modules:

- RAK19003 WisBlock Base Board

- RAK3372 WisBlock Core Module STM32WLE5

- RAK4631 WisBlock Core Module Nordic nRF52840

- RAK11722 WisBlock Core Module Ambiq Apollo 3

- RAK3312 WisBlock Core Module ESP32-S3 (coming soon)

- RAK11310 WisBlock Core Module Raspberry RP2040

- RAK1901 Temperature & Humidity Sensor

- RAK1902 Barometric Pressure Sensor

- RAK1903 Light Sensor

- RAK1906 Indoor Air Quality Sensor

- RAK12047 Volatile Organic Components Sensor

Supporting firmware:

- RAK4631-Kit-4-RAK1906

- RAK4631-Kit-1-RAK1901-RAK1902-RAK1903

- RUI3-Env-IAQ

- RUI3-RAK1901-RAK1902-Example

- RUI3-Sensor-Node-Air-Quality

- RUI3-WisBlock-Kit-1

- RUI3-WisBlock-Kit-4
