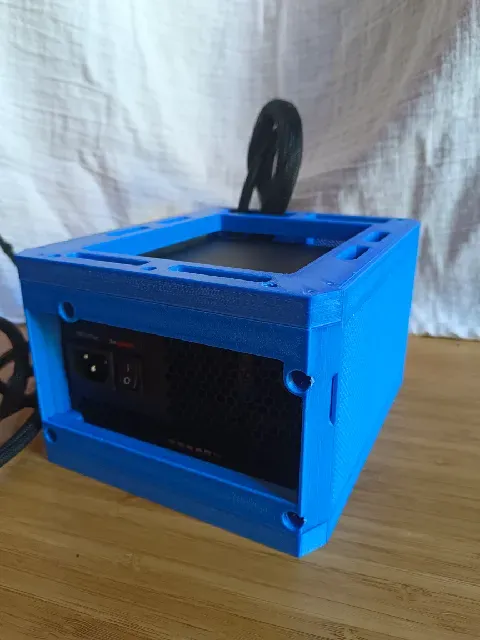

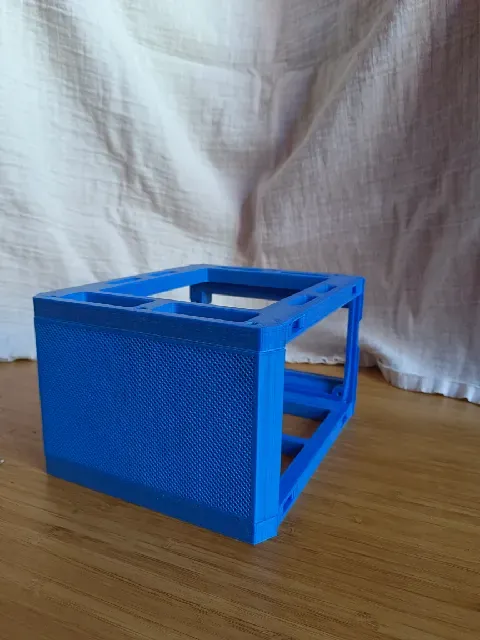

ATX power supply bay for MODCASE MASS Premium

Description

Additional module for MASS Premium allowing to use cheaper and better available ATX power supplies.

Features

- Tested with 140mm and 150mm ATX power supply - Using with 160mm should be possible, but challenging. May require to insert power supply during cage assembly - Flip version has fan facing up - Uses clips from the original design - not included here! - Same M3 20mm screws as the original MASS Printing

- Use the same settings as with MASS ( 0.2mm , 5 walls , 5 top/bottom , 20% infill ) - Front and side panels are multi-body pieces. Set no wall , no top/bottom , 40% grid infill for MESH bodies. Do not move bodies ! - All parts are already oriented for easy printing. - No support needed. - PETG recommended. Remarks

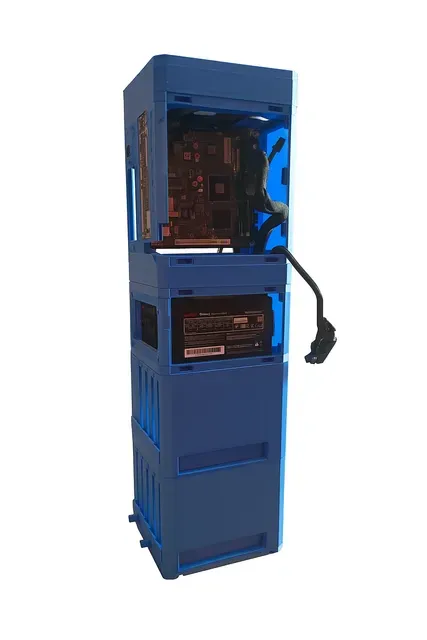

- I made a sandwichof (bottom to top): 2x HDD bay, ATX power supply, fan, main module, fan. Picture included. - I switch HDD bays with the fan under the disks. All four of my fans blow upward. - I designed a special blank (to be published later) to mount the module, converting 8-pin PCIe power to HDD power instead of the original SFX power supply.
