Components for the game "Terraforming Mars" by Stronghold games;

-"Player Cards" which sit atop (or in place of) the player card you use and play on for the game

-"Cube Trays" that help hold together the different unit cubes (gold, silver, bronze)

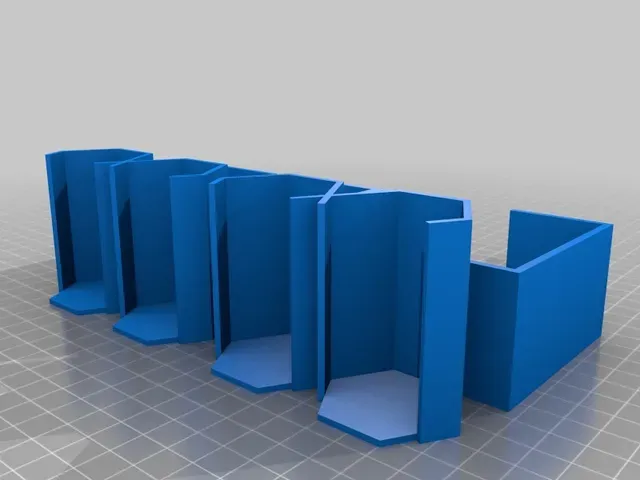

-"Hex" and "Card holders" that will house your cards and hex tiles for storage as well as play

Plus some other misc pieces. The card holders should all be sized for sleeves, I personally have mine sleeved with 64.5x90mm sleeves and they fit perfectly snug.

Hellas & Elysium, Venus Next, and Prelude compatible!!

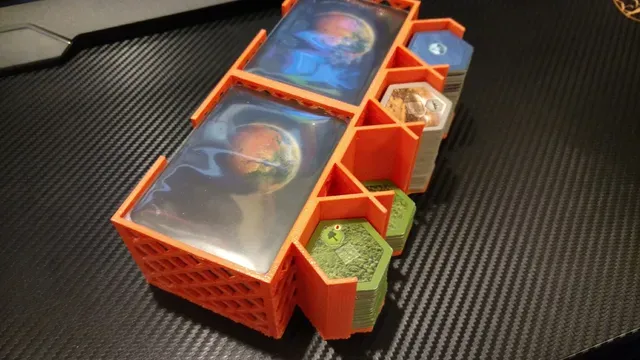

The "TM - Hex and Cardsv4.0" (comes in two parts) will hold all cards for the game with room to spare! They sit atop the Venus Next and Hellas & Elysium boards in your box. Unfortunately I am having trouble figuring out how to fit the "... Player card 2.x" versions of the player card into the box with the new card holders. Currently only the "... Player card 1.x" seem to fit nicely in between.

Print Settings

Rafts:

Doesn't Matter

Supports:

No

Resolution:

.2 or .3 - Don't bother with anything below .2

Infill:

20% or higher.

What to Print

What exactly do I need to print to fit my box and game?

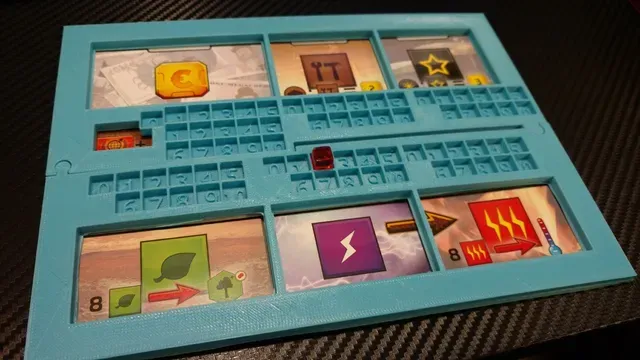

5 "Player cards"

I would recommend (though feel free to pick and choose) printing 5 copies of the "TM - Player Card Split 1.3" you'll notice they are in two pieces to help fit on some smaller beds.

Please note, depending on what player cards you choose you may not be able to fit everything in the box. Heed my recommendation for the TM - Player Card Split 1.3 version and see the pictures I posted in the album of my box.

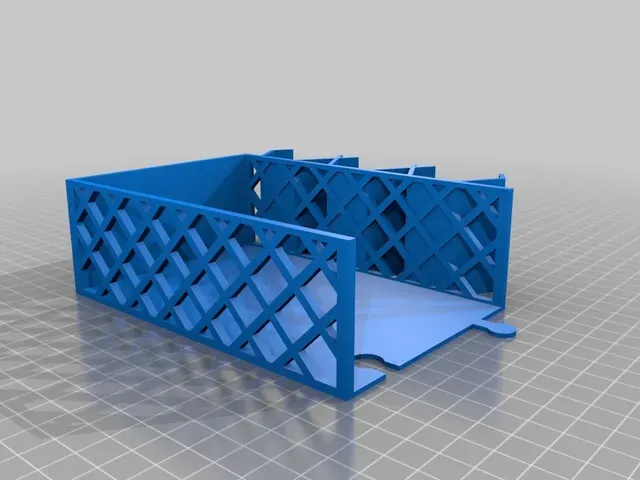

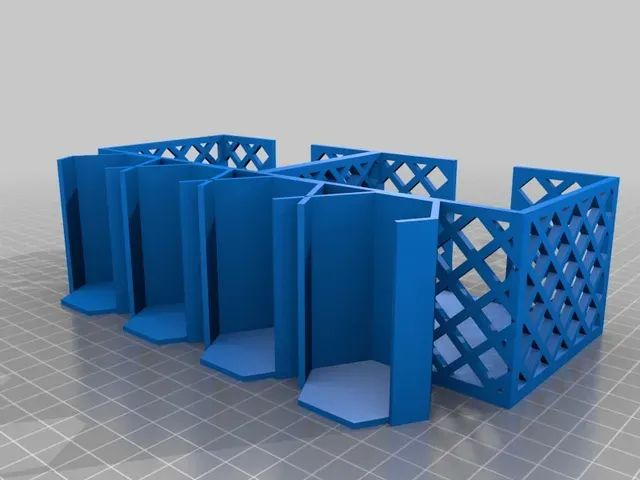

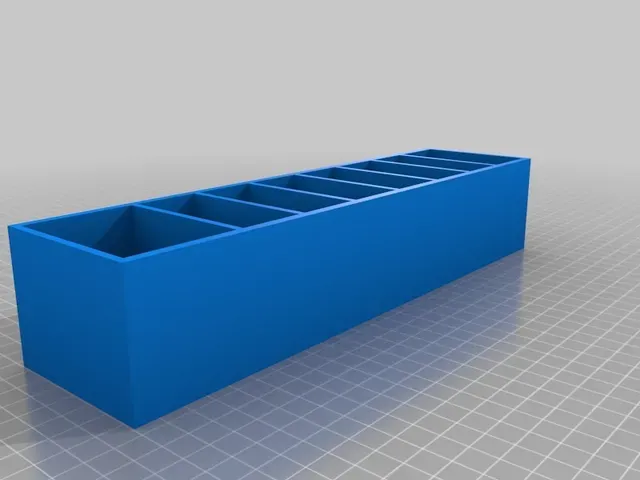

1 Card and Hex Tile holder

The newest one I posted should have plenty of room for sleeved and "naked" cards (including fitting in all Venus Next and Prelude cards). If you do make my newest one I strongly recommend welding the pieces together with acetone, and for that matter paint a little acetone over the whole piece, it should make it a bit stronger and tougher.

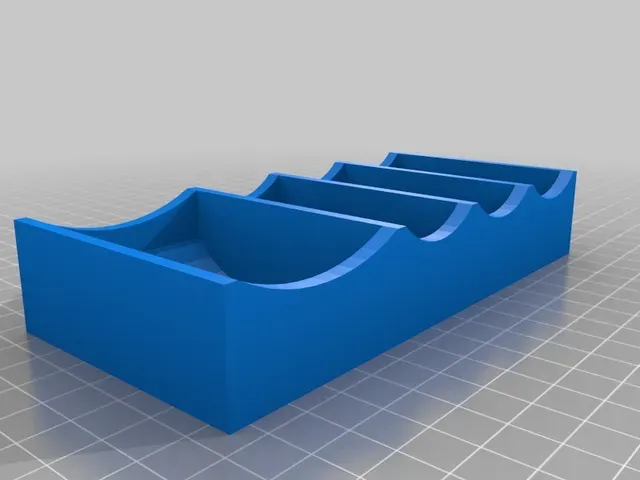

1 or 2 Cube Trays

My favorite one which seems to work the best so far is the "Terraforming Mars - Cube Tray split - Small - scalloped"

ChangeLog

--10-7-16--

Hex/Card holder - Enlarged hex holders so that hexes fit.

--10-13-16--

Added Player Card Holder/guide. Should be able to fit the cubes better than loosely setting them on the board.

Also added another Hex/Card holder .stl that has larger card boxes to try to house sleeved cards, dimensions of newer larger size cardbox shown in picture.

--10-16-16--

Added Player Card Holder in two pieces if your printer was like mine and didn't want to print it all in one piece. Works and fits fine

--11-19-16--

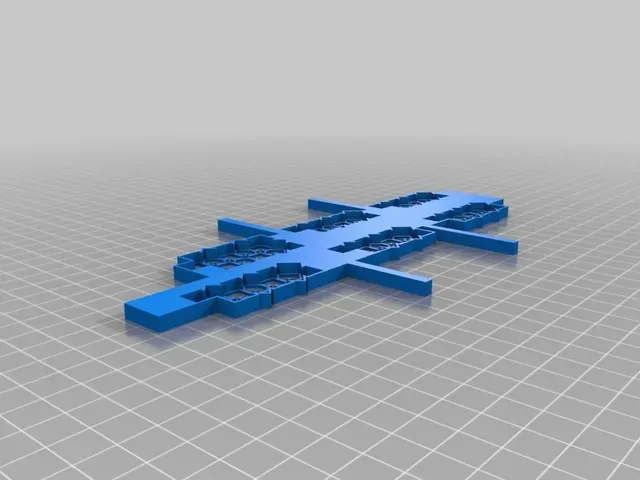

Added singular production counter pieces.

--11-30-16--

Added new player board that requires less plastic, is smaller, and lets you see the numbers from the board still! Player Card 2.0!

You may consider printing this at 101% or 102% just to make sure the cubes fit nicely and don't slide around.

--12-4-16--
