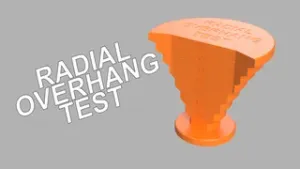

Radial Overhang Test Print

Radial overhangs are different from “standard overhangs” as they are much more supported during printing. They can therefore achieve higher angled overhangs without support material .

Features

- Angles 55°, 60°, 70°, 75° and 80°. - Required print volume: 30mm x Ø60mm Print settings

- Use your normal print profile. - Make sure part cooling fan is at 100% when printing overhangs. - NO SUPPORTS (unless you want to tune them). - Make sure external perimeters are printed LAST! My results

Other

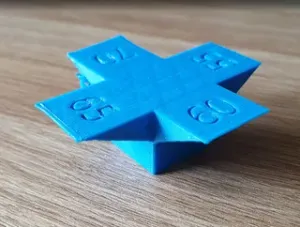

You can compare radial and straight overhangs yourself with my Overhang Cube Calibration Print and with this model! You can also watch Stefan form CNC Kitchens about Arc Overhangs .

Don't forget to share your results!
