Toolhead Cover for Qidi Plus4 with MW Beacon Mount

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-SA
Можно печатать, изменять и продавать с указанием автора; переделки — под той же лицензией.
Форматы
STLSTEP
  • 10 Лайки
  • 25 Загрузки
  • 0 Напечатали
  • 0 Комментарии
  • 355 Просмотры

Автор:BenKitesurfs

Опубликована

Описание

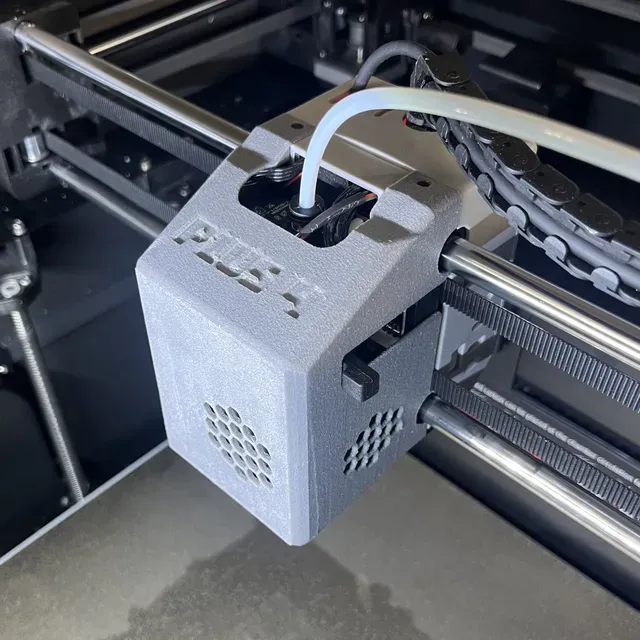

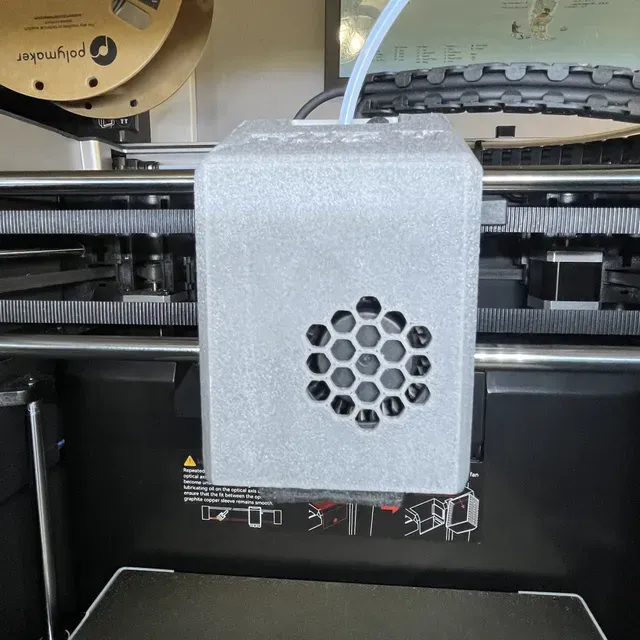

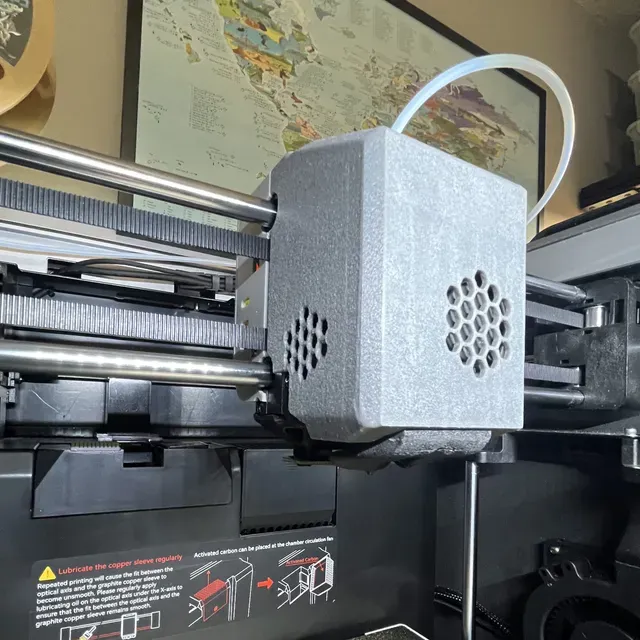

@MW_3106447 designed a nice mount for the Beacon3d Eddy Current sensor that mounts the sensor behind the head in place of the layer cooling fan. The layer cooling fan is then moved to the front of the toolhead, but the original cover no longer fits over the toolhead. I used the blank toolhead cover by Dark Doctor Studios as the starting point for the cover.

The cover has (2) 6mm x 3mm magnets (They are actually ~2.8mm thick) that stick to the (2) M3 SHCS that are used to attach the duct to the fan mount. Make sure you use Socket heads for those screws, and not button heads, if you want the magnets to work correctly.

I printed this with QIDI PAHT-GF filament, as I wanted the cover to be gray like the original, but also be able to withstand high chamber temperatures.

https://www.printables.com/model/1356432-qidi-plus4-toolhead-enhancements-with-beacon
