C270 Camera Mount for 2020 Frame Printers

I wanted to make the simplest top mounted c270 webcam mount I could for my two 2020 frame voron printers.

This is it. Fixed position, simple hardware that you have on hand from your DIY build, and does the job.

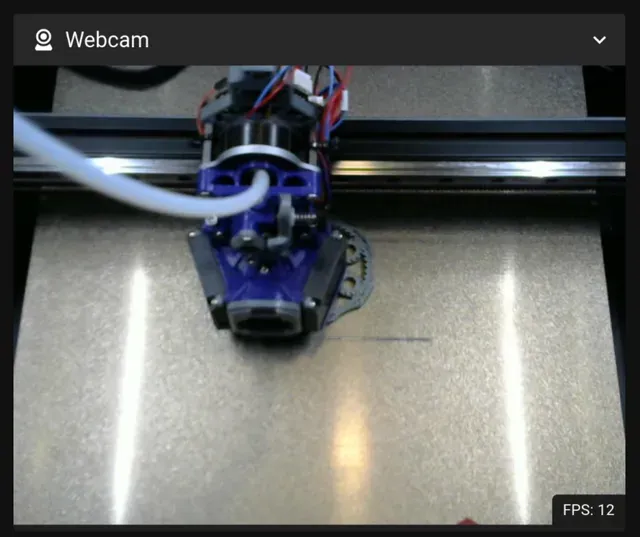

I exported two variants for the 300mm cube LDO Trident (50 degrees) and for the 300mm Voron 2.4 builds (70 degrees). Those angles are about as optimal as you can get with the somewhat narrow FOV of these cheap cameras (especially for the trident).

The included FreeCAD file has a spreadsheet that will let you adjust the angle to whatever you need for your printer, but you may have to regenerate the chamfers due to TNP issues.

Hardware needs: - 1x M3 8mm BHCS - 1x M3 tslot nut or hammerhead - 1x M3x4x5 heatset - 1x M3 16mm SHCS
