Hundreds of Metric Dome V2 Bolt Screws M2 up to M64 (easy print)

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 445 Лайки
  • 1 211 Загрузки
  • 0 Напечатали
  • 5 Комментарии
  • 4 242 Просмотры

Автор:Filamentix

Опубликована

Скачать на Printables

Описание

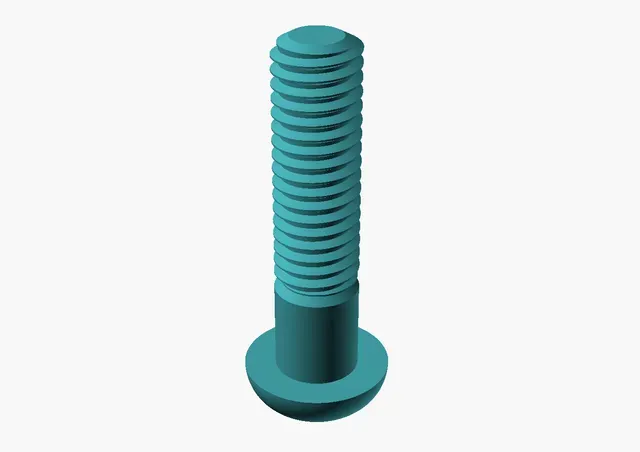

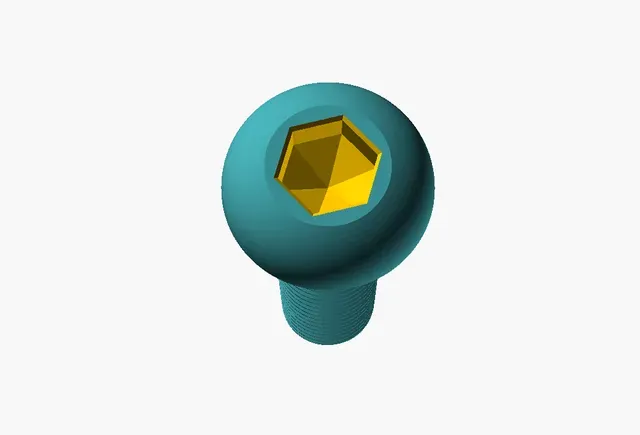

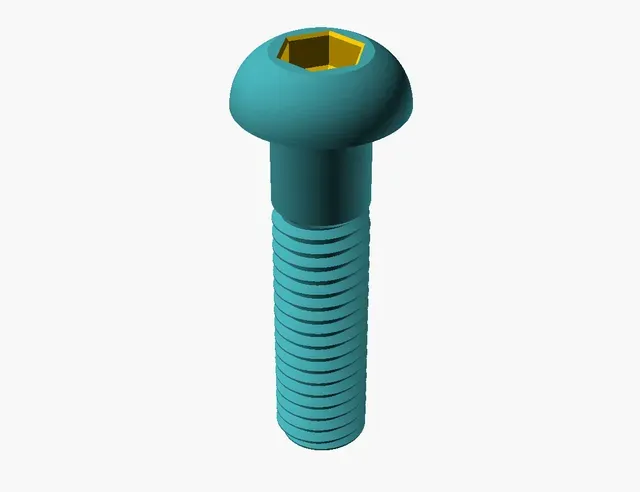

A large set of metric dome head screws with partial threads inspired by ISO 7380. The standard design has been modified for easy printing. The improved thread design has a maximum tolerance of 2.5 µm. It should well fit without considering printing tolerances. Please print with low layer height, e.g. 0.15mm for a 0.4 mm nozzle. This will improve the mechanical strength of the threads as well as precision.

Please report, how the screws print and please let me know, what you use them for. I am really curious.

Please find the respective nuts here: Complete Set of Metric Nuts Version 2: M1 up to M64

This model has required a computation time of three days in total. Computation was powered by solar energy.
