CORE One + Horizontal Cable Guide "MMU3"

English

CORE One + / MMU3 – Horizontal Cable Guide

On the Prusa CORE One, the PTFE tube also acts as a cable holder, but it hangs loose and does not keep the cable horizontal.

With MMU3 installed , the tube is no longer needed. This model originally replaced the tube with a strapping band (15.5 × 0.7 mm) held in a 3D-printed clip.

Update: The model now includes two versions :

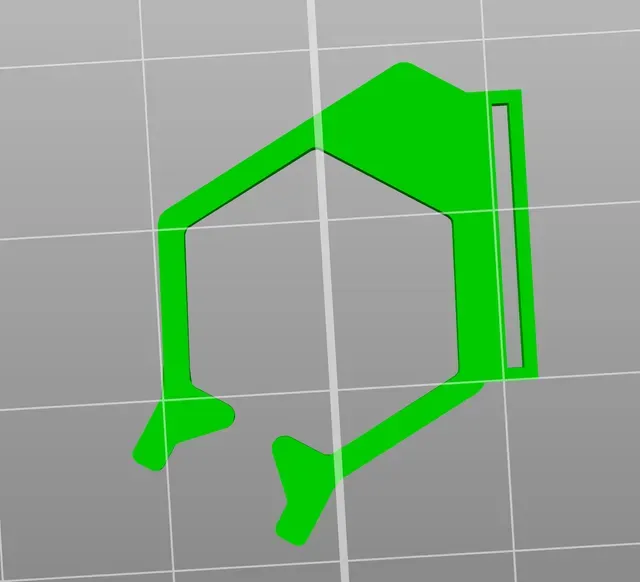

- Clip version – uses a separate printed clip to hold the strapping band

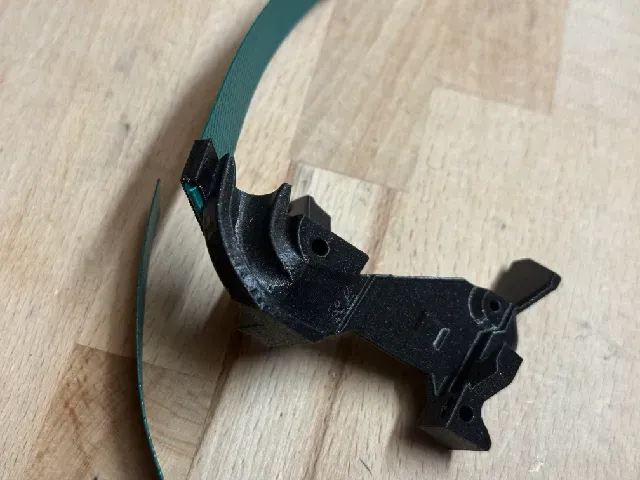

- Direct strap version – the clip is removed and the strapping band runs directly in an integrated guide on the printed part

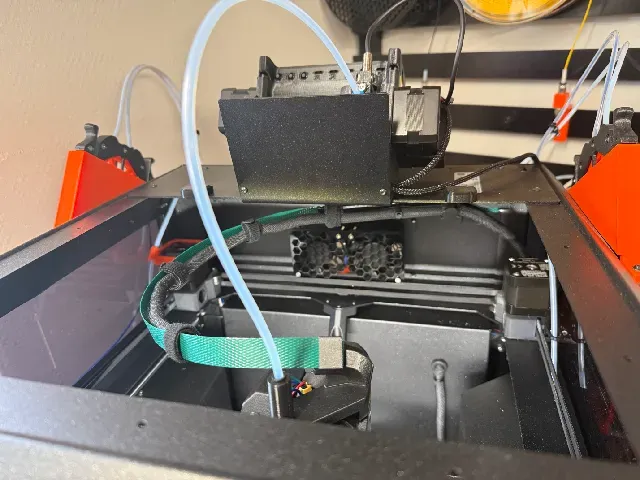

Result: tighter cable management, no dangling cables, and free toolhead movement.

https://www.facebook.com/100000655244863/videos/pcb.5114107335481749/1384030599365213

Best regards Leif Lumby Henriksen Odense3D Community: https://facebook.com/groups/2911561982402973

Dansk

CORE One + /MMU3– Vandret kabelstyr

På Prusa CORE One fungerer PTFE-tuben også som kabelholder, men den hænger og dasker i stedet for at holde kablet vandret.

Med MMU3 monteret er tuben ikke længere nødvendig. Denne model erstattede oprindeligt tuben med pallebånd (15,5 × 0,7 mm) holdt i en 3D-printet klips.

Opdatering: Modellen findes nu i to varianter :

- Klips-version – pallebåndet holdes i en separat 3D-printet klips

- Direkte pallebånd – klipsen er fjernet, og pallebåndet løber direkte i en integreret styring i plastdelen

Resultat: strammere kabelføring, ingen dasken og fri bevægelse af toolhead.

https://www.facebook.com/100000655244863/videos/pcb.5114107335481749/1384030599365213

Med venlig hilsen Leif Lumby Henriksen Odense3D Community: https://facebook.com/groups/2911561982402973
