Car phone holder for peugeot Partner

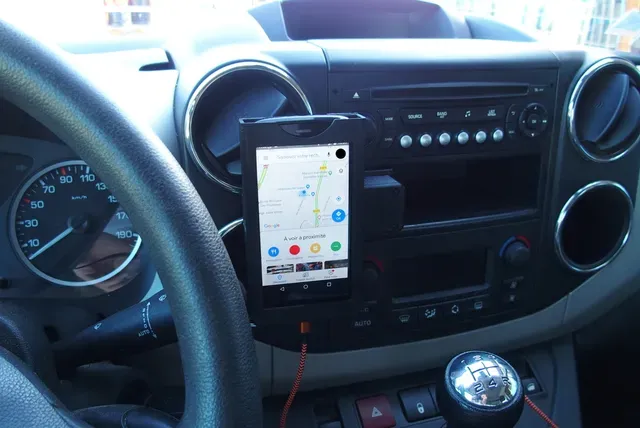

This phone holder is designed to fit in the empty space where a second car radio could be installed.

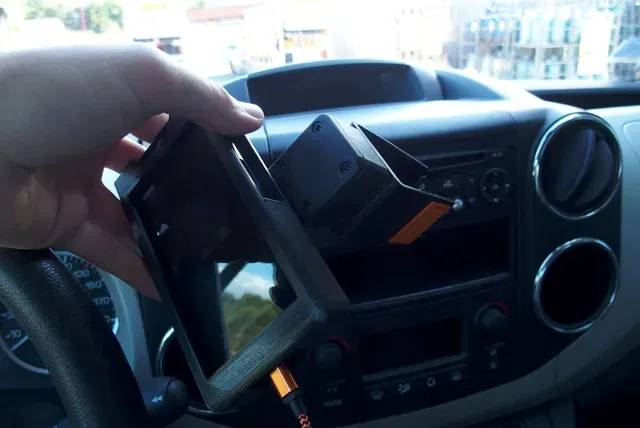

It fits for a Motorola G 4G phone and a Peugeot Partner but could be easily adapted to your needs due to its modular design.

Edit : added holder for Google Pixel 4a phone.

It was designed in Onshape, you can copy and edit it from these 2 links : https://cad.onshape.com/documents/9a424f03fe57e299b6342977/w/8609df9e7e5648cad37943b4/e/4930ddbf4c9cb226ab075301

https://cad.onshape.com/documents/346535071047bb079f0c901e/w/937cd230bba4c50f11d5389e/e/d9b01e98554589676e844523

https://cad.onshape.com/documents/549808d1ec441692c854b6f6/w/75c620065e2e17cbabb1553f/e/b4a6d8f8885791de7350a362?renderMode=0&uiState=63f857ded19faf76ee2aab8f

Print Settings

Printer Brand:

MK3

Printer:

Prusa i3

Filament: Form Futura PETG

Notes:

I printed this with PETG with 0.15mm layer height. Supports are only needed for the phone holder part.

The pads are printed with Flexible filament to increase friction. (Filaflex from Recreus in my case)

Some of the provided stl files are not in the correct orientation for printing.

Category: Mobile Phone
