Kryptonite Evolution Mini-7 Lock Mount for KuKirin G2 Pro

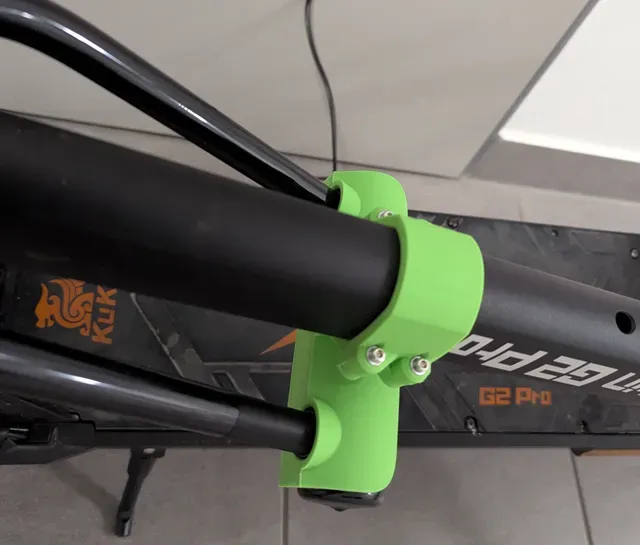

This is a custom-designed mount to securely attach a Kryptonite Evolution Mini-7 U-lock to the frame of a KuKirin G2 Pro e-scooter.

The basic idea is from here: https://www.printables.com/model/742454-kryptonite-lock-mount-for-city-electric-scooters

The two-piece clamp design allows for easy installation without having to disassemble other parts of the scooter. It provides a snug fit to prevent rattling while riding. While designed specifically for the G2 Pro, it might also fit other scooters with a similarly shaped stem tube.

Hardware Needed:

- 4x M3 screws, thread length ~20mm - 4x M3 hex nuts - 8x M3 washer, outer diameter 7mm, thickness ~0,9mm Printing:

- Material: I recommend using PETG, ASA, or ABS for better durability and UV resistance. - Infill: 25-40% for good strength. I did 20% gyroid and added modifiers with 40% adaptive cubic infill in the screw areas. - Walls/Perimeters: For high strength, use 4 to 5 walls (perimeters). - Top/Bottom Layers: Use 4 to 5 solid layers for both the top and bottom. - Layer Height: 0.12mm - Supports: No Assembly:

- Print the parts. - Slide the washers in the slots near the hexagonal openings for the nuts. - Press the M3 hex nuts into their dedicated slots on one half of the clamp. - Position the two parts around the scooters stem. - Insert the M3 screws with the washers and tighten them evenly until the mount is secure. - Replace the bracket on the steel shackle with the sleeve.
