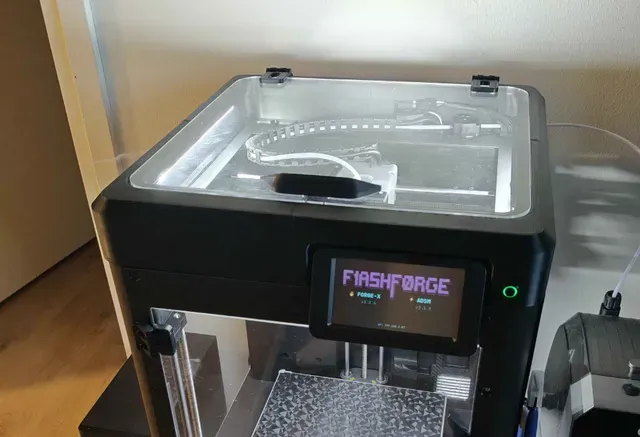

Flashforge Adventurer 5M (AD5M) Enclosure Top

I wanted a slimmer enclosure top to the original one, but wasn't fully happy with the looks of the (very good, i should add!) minimal enclosure top made by the talented Doug of @design8studio . So i made another one. Yes i know, i'm very picky and particular about things.

When printed with 3 walls and 10% gyroid infill, this uses roughly half a kilo of filament. So not the most minimal, but less than the OG. This is made to pair with the rest of the minimal enclosure, so if you're on OG guard plates, this isn't gonna fit well to that.

Left parts print just fine without supports; for the right side, both rear and front supports are very much recommended.

This has small holes on 3 walls for light bar (There's several models, but i also made one ), the hole distance is the same as in the OG and the minimal version. I've also included some small studs you can print if you don't happen to have right screws on hand. They are friction-fit and should be sturdy enough to keep lights in place. Printing with PETG or something that can handle heat better than PLA is recommended. Mine in the pictures is made from ABS.

There's holes at the bottom for 5x2mm magnets, it'll stay nicely in place with those.

The screen is in default position, so you don't need to deal with the ribbon cable or any of that.

I've included 2 versions of the left front panel - One has carved corner - If you want to use the USB on the display. The other one looks cleaner in my opinion, and i also personally had zero use for the USB so it covers that.

----

I wasn't sure whether to put this as a remix or original model - but i settled on the latter based on that i did design this from scratch, even though it has obvious design ques from the OG one.
