Yamaha Silent Cello Bridge Protector
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC
- Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
- Форматы
- F3DSTL
- 4 Лайки
- 11 Загрузки
- 0 Напечатали
- 0 Комментарии
- 115 Просмотры
Описание

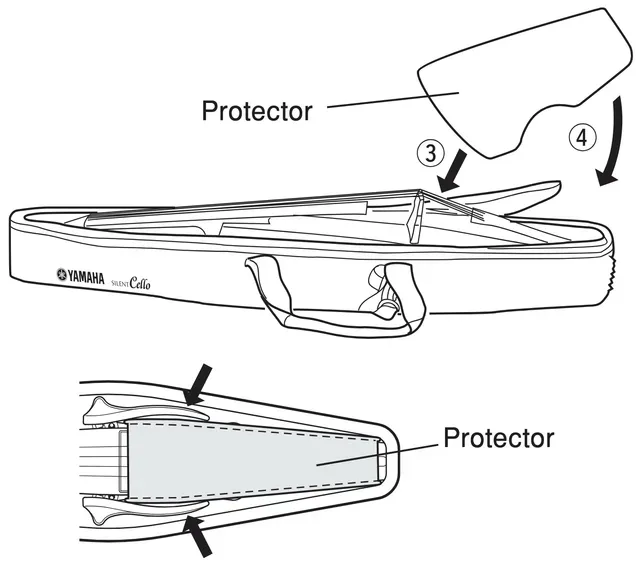

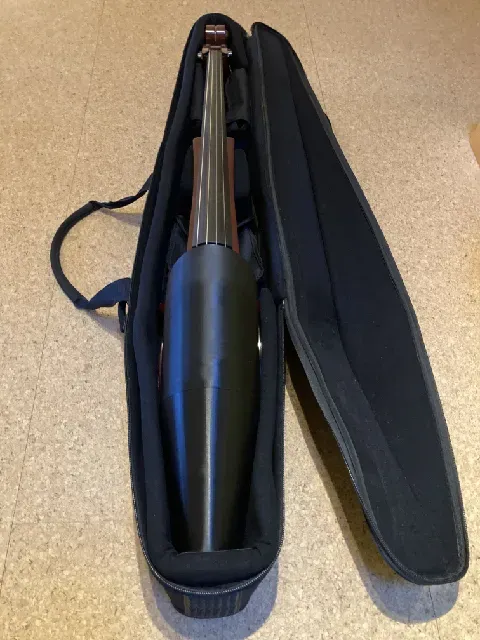

We bought a second hand Yamaha SVC 210 but the original Bridge Protector that comes with the Yamaha case was missing.

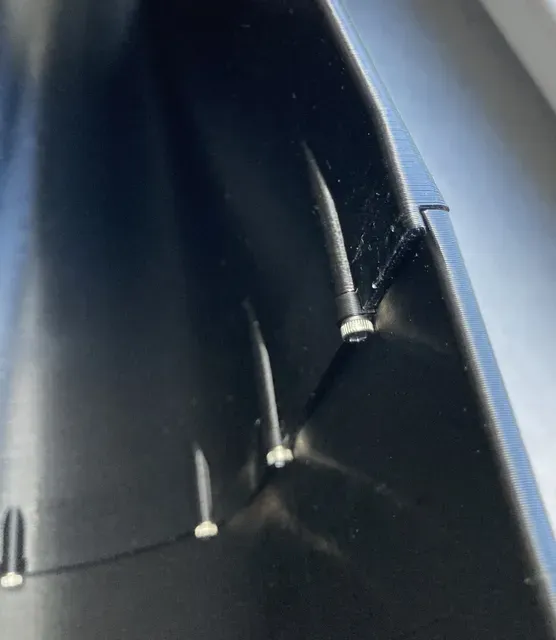

I recreated one that anyone with a 3D printer with a volume of W250xD200xH200 can print it. You will need 5 hex screws M3x140.

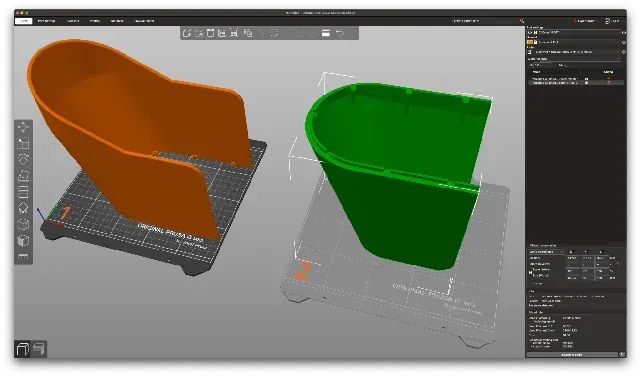

It costs only a few bucks to print (and almost a day for the 2 halves).

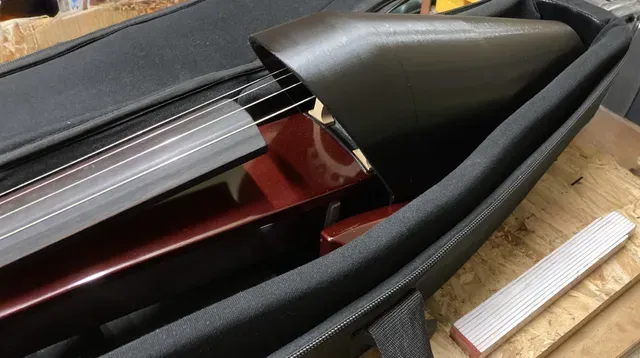

I used PLA and it is imho a really good protection (compared to nothing at all). For sure, this is NOT a flight case but this is much better than the case alone. If you want a bit more flex, you may print it in PETG but I think the day the PLA is damaged, the ecello would have been damaged anyway.
If I had to print it again, I would manage to create a brim at both end of the “base” because it tend to retract a bit at the beginning of the print. Fortunately, it did not retract enough to ruin my print ;-)
Hope this can help someone to protect this awesome instrument !
