Customizable Cable Chain for SV08 MAX – Easy Print & Maintenance

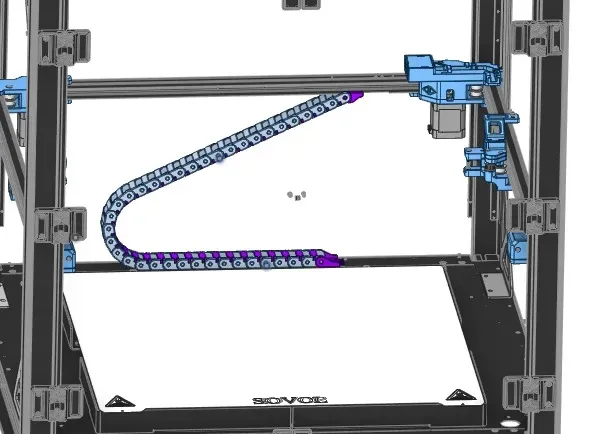

This is a custom-designed cable chain system for the SV08 MAX that connects the back of the gantry to the bottom of the printer. It’s built for easy maintenance, customization, and reliability .

I have printed this with and without supports and they both fit and work perfectly!

✅ What makes it special?

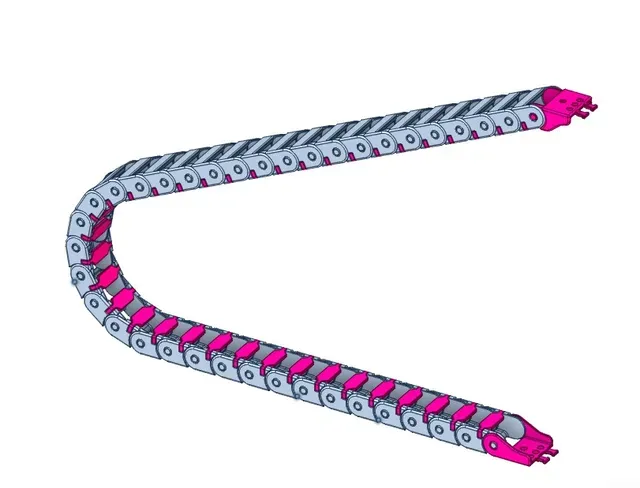

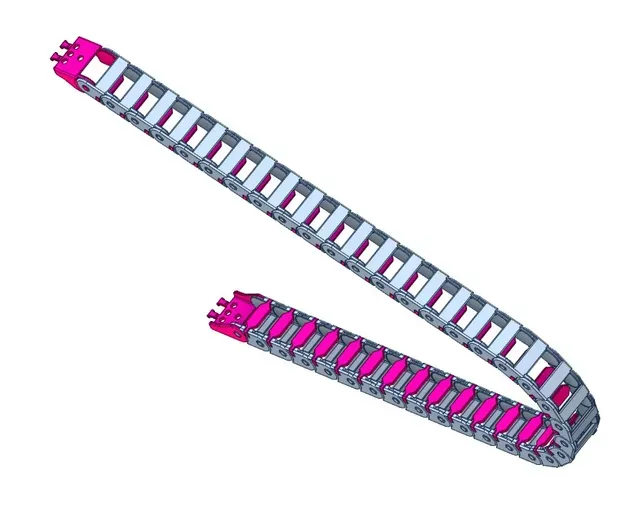

- Fully modular: chain links + accent clip - Customizable length & colors - Print-friendly: no supports needed - Simple maintenance & cable routing Printing Settings (recommended):

- 3 walls - 10% infill - 5 top / 5 bottom layers 🔗 You’ll need about 37 chain links (±2) depending on your cable setup – some stock cables are longer/shorter. This comes from our experience with the stock SV08 cable chain.

Parts included:

- Upper link (gantry connection) - Lower link (printer connection) - Chain links - Clip (perfect for accent color) Enjoy and happy printing!

💬 Want to Help Improve It? If you test it, please leave a Make or comment with your results and suggestions. We’ll include all confirmed improvements in the final release.

Let’s bring our Sovol printers to the next level – together! ⚙🔥
