Spool holder & arm, side mounted / HE3D K280 / Delta / 20-2020 style

Площадка: Printables
Цена: Бесплатно
Лицензия: CC-BY; Можно печатать, изменять и использовать в коммерции — с указанием автора.
Форматы: STL

1 Лайки
6 Загрузки
0 Напечатали
0 Комментарии
48 Просмотры

Автор:Lloyd Summers

Опубликована 09.09.2025

Скачать на

Printables

Описание

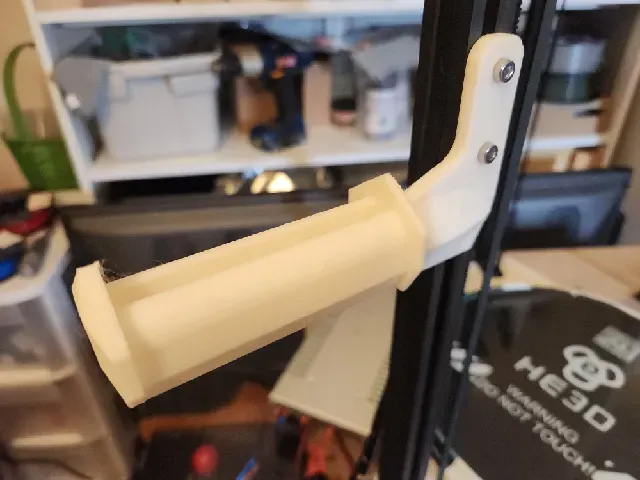

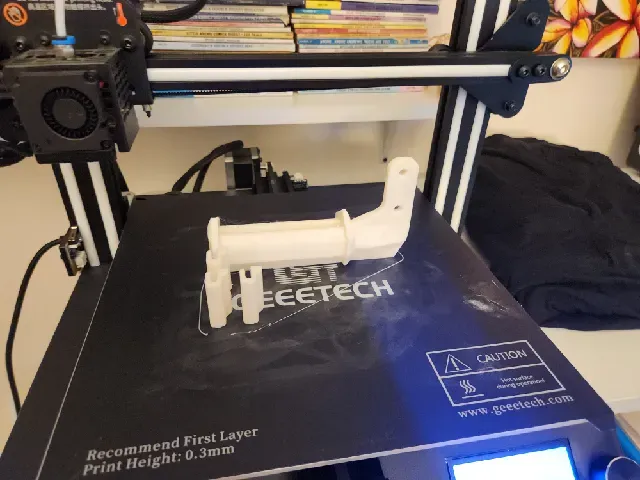

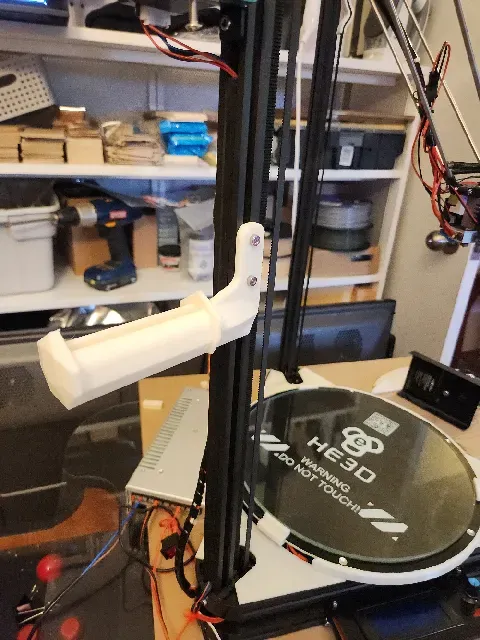

A simple, quick, easy to print spool mount for 20-2020 arm 3D printers.

Installation Notes

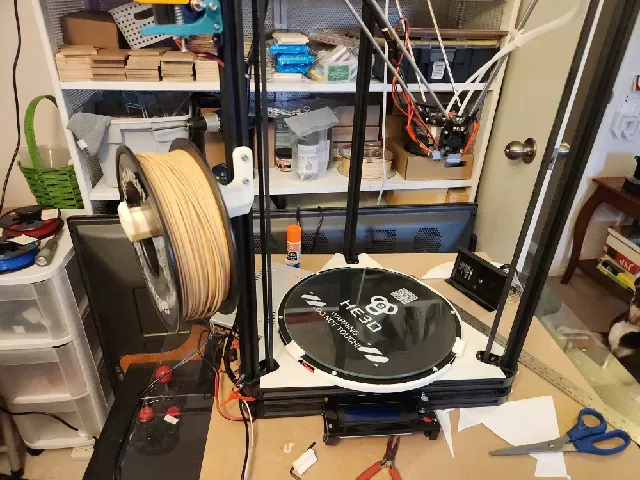

Contrary to some of the photos, mount it either low, or sideways, so the running motor arm things don't hit it going up and down. Test it by manually moving your extruder head up and down to make sure they aren't blocking anything.

Kit Items

This is part of a complete set I created for my K280 / HE3D and should be compatible with other 20-2020 style delta printers. It was designed around the 280mm base.

https://www.printables.com/@LloydSummers_3568672/collections/2637519

Version History

Version 4.0

- First Release - Made the arm longer Version 3.0 & Earlier

- Pre-release, not as important. Version 3.0 has a shorter arm but can block the motors from moving up and down.
