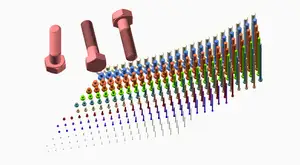

Hundreds of Metric Hex Screw Bolts with Precise Threads M1.6 up to M64

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STLSCAD
  • 1 510 Лайки
  • 3 031 Загрузки
  • 5 Напечатали
  • 29 Комментарии
  • 14 026 Просмотры

Автор:Filamentix

Опубликована

Скачать на Printables

Описание

These screws are inspired by ISO 8765 metric screws but they have standard pitch threads . They come with hexagonal heads, that are slightly bevelled on one side and contain a washer-like elevation on the other side. The longer screws have partial threads. My inproved thread design has an accuracy of 2.5µm and should fit without tolerances. Please print with low layer height, e.g. max. 0.15 mm for a 0.4 mm nozzle.

Please be advised to use the screws with my version 2 nuts: Complete Set of Metric Nuts Version 2

or with my flat nuts: https://www.printables.com/model/1389484-complete-set-of-precise-metric-flat-nuts-m2-up-to

Please find the respective UNC bolts here: Hundreds of UNC Hex Bolt Screws with Precise Threads #0 up to 2＂

This model has been created as a response to requests by YouKnowThatDad and sanperez313.
