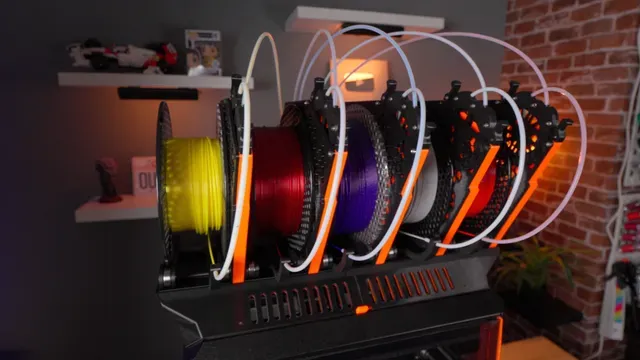

More Compact MMU3 Community Build - Prusa CoreOne

After assembling Sam's very tidy MMU3 Community version, I decided to make a few slight modifications to save space on the width of the whole unit.

The main modifications are:

Buffer Cover: Reduced width by around 2mm. This saved some space and also allows the buffer wheel to be more secure

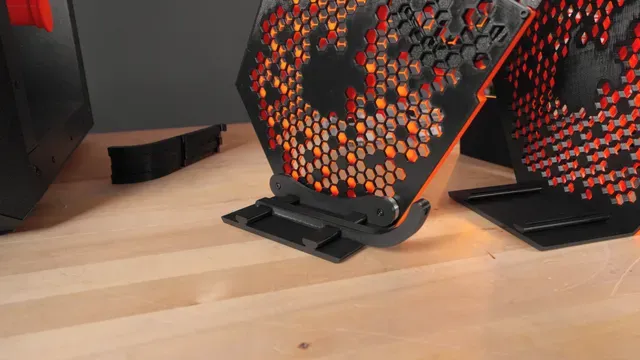

Spool Holder: Made the buffer wall thinner, Integrated one side of the buffer side roller carriage and reduced bottom plate size. This not only saved space, but also created an anchor for the spool.

PTFE guide: created this to avoid PTFE bending while pulling filament

Top Rail: Widened it by a couple of mm and also added side walls. This will prevent the spool holders from sliding off the rails

All other parts can be downloaded from Sam's model.

For more detailed information on my mods, You can check out the video I made explaining my choices :)
