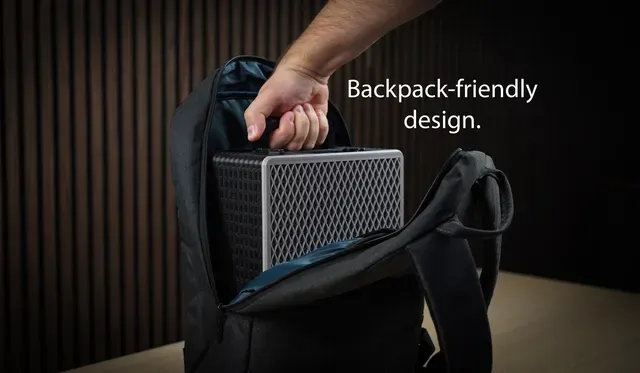

Backpack-friendly ITX PC case v2.0

Check out the building video on YouTube !

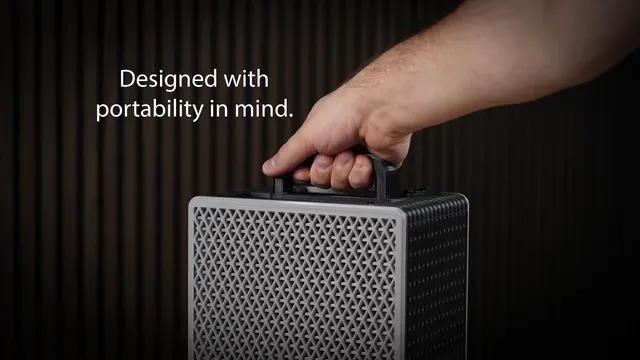

The case can also be built without the carrying handle. See file marked "OPTIONAL".

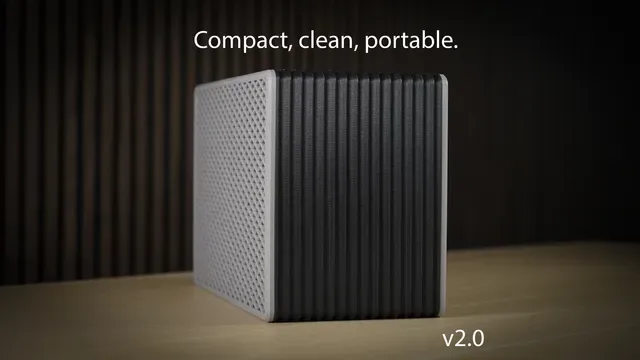

What is the size?

- Dimensions: L 320 x H 215 x W 162 mm (excl. carrying handle)

- Volume: 11.2 liters.

What's the requirement to print this?

- A print surface of minimum 215 x 180 mm.

- Recommended: A machine that can handle PETG or other temperature-resistant filament.

PRINTABLE WITHOUT ANY SUPPORT MATERIAL

What parts can this case hold?

As an Amazon Associate I earn from qualifying purchases. All product links below are Amazon affiliate links.

- ITX Motherboard

- 2, or 2.5-slot GPU up to 295mm long.

- SFX power supply

- A low profile CPU cooler up to 55mm

- Storage: Motherboard's onboard M.2 slots only

- 2x 120*15mm Slim PC fans

What's required to build this?

- 38 x M3 x 10 mm screws (HEX key head)

- 38 x M3 x 5.7 x OD 4.6 mm threaded brass inserts

- Ø12 mm power button

- C13 to C14 power extension at least 400mm long (must be angled, angle must match your PSU socket)

- 300mm PCIe riser cable with angled connector at the end

- Soldering iron

- Estimated filament use: 2 KG total (main body approx. 1,3kg / side panels approx. 700g)

Printed parts list and printing recommendations:

Recommended print settings in the table below are based on a 0.4mm nozzle size. If using other nozzle size, please convert numbers accordingly.

Part name:

Est. filament use:

Walls / Top / Bottom layers

Infill %

main_body_front_v3.2

400g

4 / 4 / 4

20

main_body_rear_v3.2

350g

4 / 4 / 4

20

internal_motherboard_mount_v3.2
