Filament Swatch

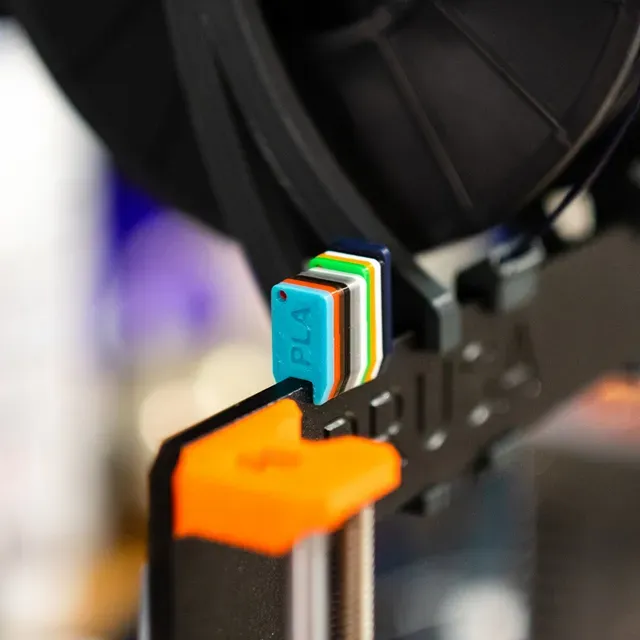

Filament swatch with labels that could be used for calibration which could also be clipped onto the Prusa MK3 frame to keep track of your filament inventory. There's also a hole to attach the swatches to some kind of loop if you want.

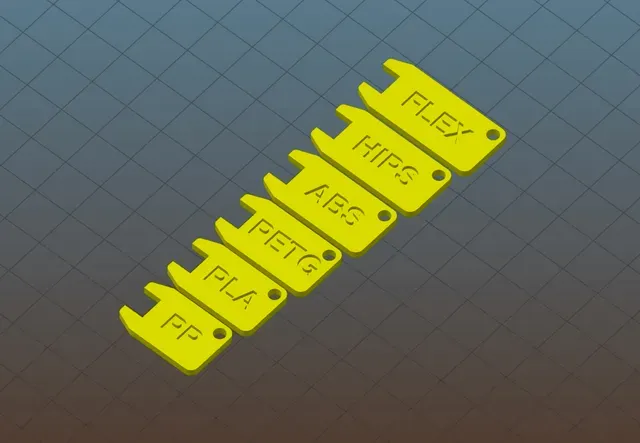

Each type of filament swatch has a different height (not including the clip legs, which are 5mm tall) to tell the filaments apart at a glance when clipped to the printer's frame. All swatches are 2mm thick.

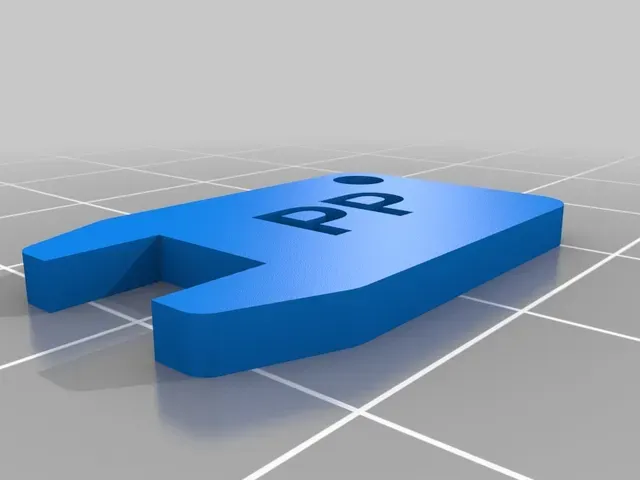

PP (18mm)

PLA (20mm)

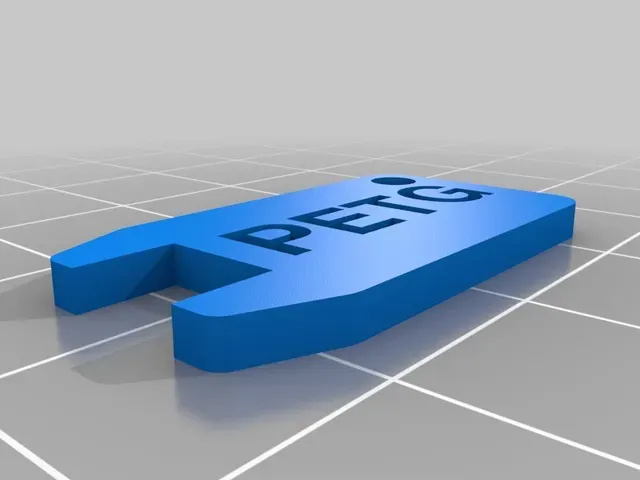

PETG (22mm)

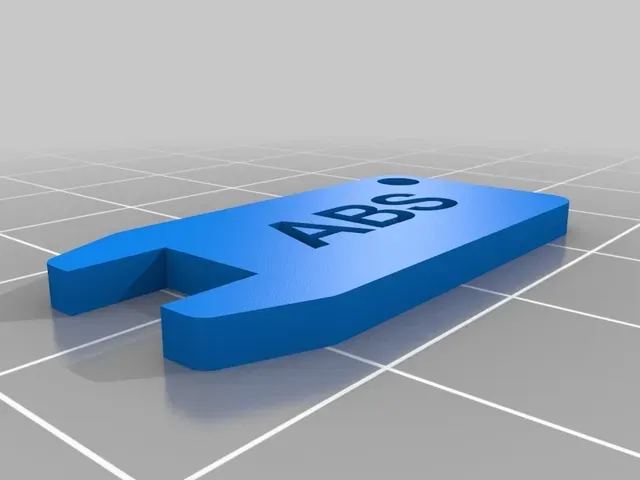

ABS (24mm)

HIPS (26mm)

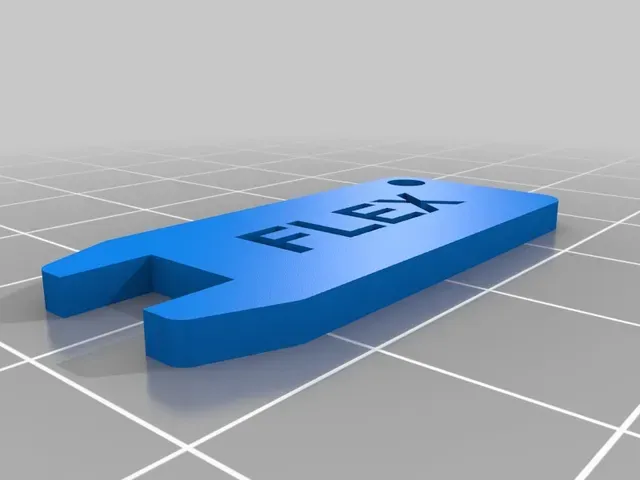

FLEX (28mm)

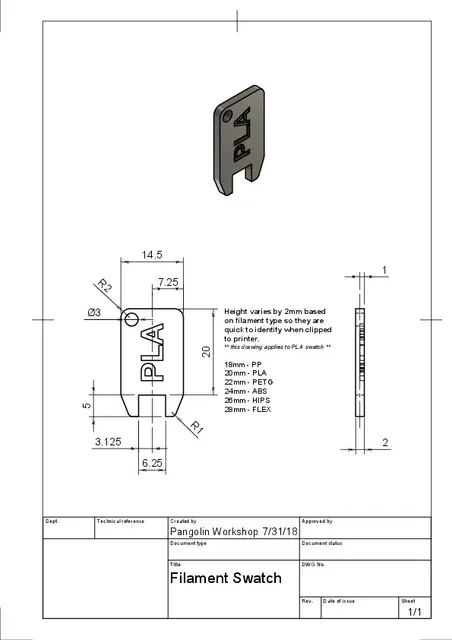

Dimension drawing (2:1 scale) included if you want to check your calibration. Just remember the height (not including the bottom clip part) varies.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

.1 or .2 You decide.

Infill:

100% or 20%

Notes:

About 6 - 10 min. print time.

Change your printer settings base on the material you're printing with.

If the text is not printing right, play around with "Detect thin walls" settings.
