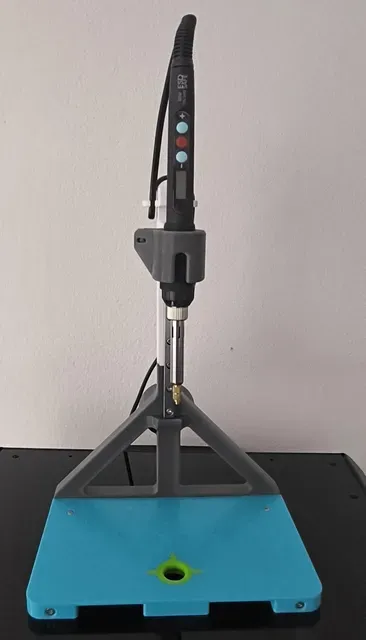

Low-Cost Heat-Set Insert Press – Simple, Precise & Reliable

Low-Cost Heat-Set Insert Press – Simple, Precise & Reliable

Installing heat-set inserts by hand? Forget the crooked, half-melted mess. This low-cost press keeps your soldering iron perfectly vertical for clean, repeatable insert installations — without expensive hardware.

It uses a 9×150 mm linear rail (e.g. LML9B) for smooth and stable motion, plus a retractable Key-Back that automatically lifts the arm after each press. Everything else is 3D printed and assembled with standard M3 bolts — no heat-set inserts required for the press itself.

Features

- Low-cost design – reliable performance using inexpensive, easy-to-find parts. - Smooth linear motion – 9 mm rail keeps the iron aligned and stable. - Automatic return – Key-Back reel lifts the arm after each use. - Easy assembly – all parts fit with standard M3 bolts and two aluminum spacers (Ø6×8 mm). - Compact & rigid – stable base ensures clean, flush insert seating. - Fully printable – all 3D files included. Required Parts

- 3D printed parts (included) - M3 bolts (see list in the PDF manual) - 9 mm / 150 mm linear rail (e.g. LML9B) - Retractable Key-Back (badge reel) - Soldering iron with heat-set insert tip - Aluminum spacers Ø6×8 mm – 2 pcs Printing & Assembly Details

All recommended print settings, orientation, and assembly steps are included in the provided PDF manual . Everything’s described clearly — from infill and supports to hardware placement.

If you need to adapt the mount for a soldering iron with a different diameter than Ø19 mm , just leave a comment with your iron size — I’ll help adjust the model.

In Short

A budget-friendly 3D-printed press for heat-set inserts — stable, repeatable, and accurate. Perfect for makers who want precision without overpaying.

Got ideas for improvements, mods, or your own version? Drop a comment, share your make, or post a photo — always great to see how others use it! Let’s keep building better tools together. 🔧
