General

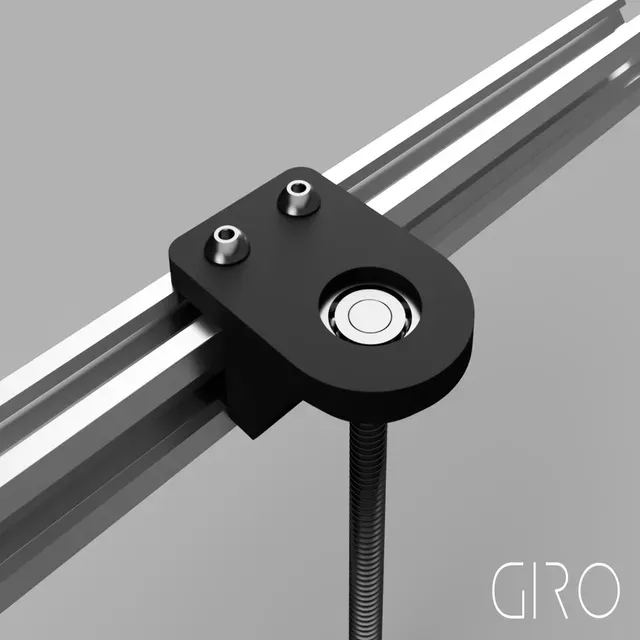

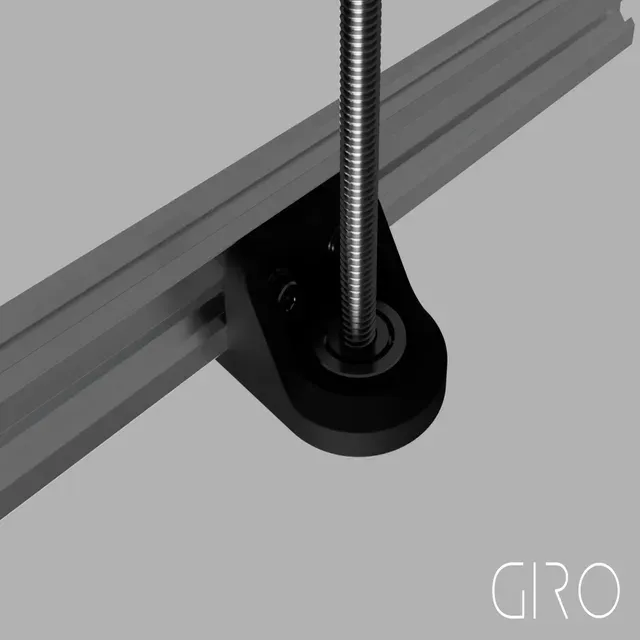

This bracket was designed to be mounted on the Z-Axis of the Eryone Thinker S and uses 608 ball bearings. This bracket stabilises the Z-Rod and helps to strengthen the frame of the Eryone Thinker S.

You will need additional screws, nuts and washers for the mounting of bracket. The needed parts are mentioned below.

Additional screws, nuts and washers per bracket

- 2x M4x10 - 2x M4 Washer - 1x 608 Ball Bearing Printing

I would recommend to use 2 or more perimeters. Print with a lower speed, for example 40 mm/s, to get a more accurate printing. I recommend to print the bracket with at least 50% infill.

Additional Information

Let me know if there are any kind of problems with the bracket. I will try to help and if neccessary correct the design. I appreciate any kind of feedback to this bracket.
