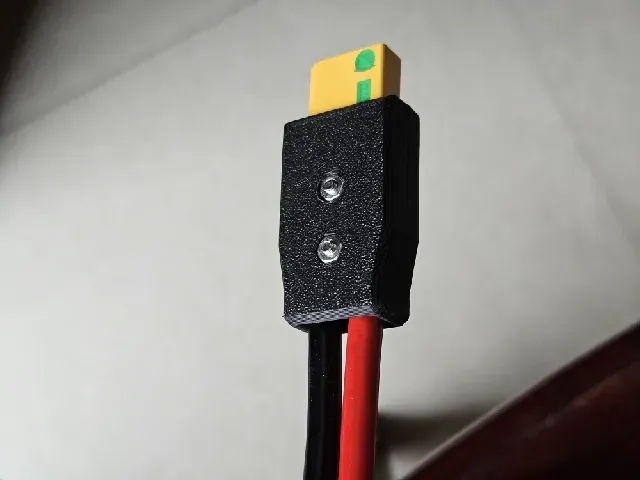

Amass XT90 cable cover (sparkless and standard)
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY
- Можно печатать, изменять и использовать в коммерции — с указанием автора.
- Форматы
- STL
- 12 Лайки
- 66 Загрузки
- 0 Напечатали
- 0 Комментарии
- 229 Просмотры
Описание
Remixed the model with these changes:
- Make the end larger to accommodate my 8AWG cable which seem to have thicker insulator than other 8awg. - Added hex nuts on the other side - Make 3 different versions for standard Amass XT90, Sparkless XT90 with 14mm bolt and 12mm bolt. - Complete the groove on both halves so it close without gap. In the original design it only run for half of the cover lengthRemixed the model with these changes: - Make the end larger to accommodate my 8AWG cable which seem to have thicker insulator than other 8awg. - Added hex nuts on the other side - Make 3 different versions for standard Amass XT90, Sparkless XT90 with 14mm bolt and 12mm bolt. - Complete the groove on both halves so it close without gap. In the original design it only run for half of the cover length Why use this instead of the original cover? There are only 2 reasons:
- Your cable was too big to pass through original cover - You forgot to put it on the cable before soldering
