Servo Driven Chamber Vent for Core One MMU3 Enclosed

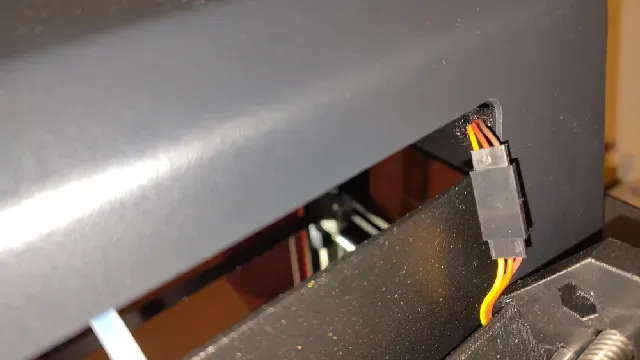

Here is my optional servo mount for the MMU3 enclosed version. The motor is attached to the mount with two M2x8 screws. The mount itself is fixed to the cover using double-sided adhesive tape so that the motor can move the ventilation grille. The motor cable is routed out through the opening for the MMU tube and held in place with adhesive cable mounts. The cable length should be sufficient so that the connector sticks out, making it easy to disconnect if the lid ever needs to be removed. For everything else, refer to the original project by S3BR4, which also includes a detailed BOM and further instructions.
