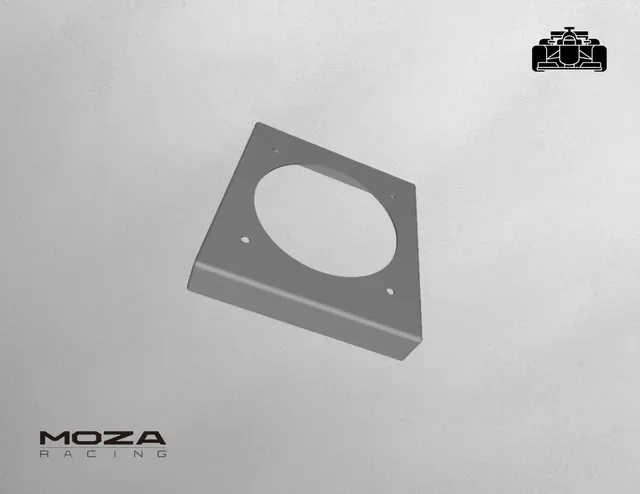

MOZA Cooling Fan Bracket for R5/R9/R12 Wheelbase

Compatible Products:

- MOZA R5 Wheelbase - MOZA R9 Wheelbase - MOZA R12 Wheelbase Required Hardware (Not Included):

- 4× M5 nuts - 4× M5×40mm bolts - 2× M3×25mm bolts - 1× 120mm cooling fan (120mm×120mm×25mm) Installation Instructions:

Step 1: Remove the display screen or any mounted accessories from the top of your wheelbase (if applicable).

Step 2: Insert 2 M5 nuts into the hexagonal recesses on the inside of the bracket main body.

Step 3: Secure the bracket main body to the wheelbase using 2× M3×25mm bolts.

Step 4: Place the 120mm cooling fan on the bracket with the fan front facing upward (ensure proper airflow direction).

Step 5: Attach the bracket cover plate using 4× M5×40mm bolts to secure the fan in place.
