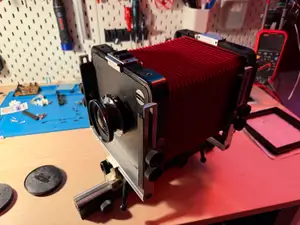

Arca Swiss 4x5 bellows frames

If you order custom bellows from China, you get only the bellows. You still need frames to connect them to the camera.

This is almost an exact replica of original bellows frames. I ripped off the original bellows from the original frames, but glue residue was so disgusting that i decided that printing a replacement would be a better idea.

Consider using variable layer height to get a good slope. I used multimaterial supports because i can, but you'll probably get away with bridges just fine.

Helper is an insert that will help you to center and orient bellows when glueing them. Fit is quite tight, consider using XY comp.

You just glue frame to bellows with contact adhesive (like shoes glue). Please follow instructions for your glue! Also, triple check orientation before glueing ;)
