Umbrella Handle Repair

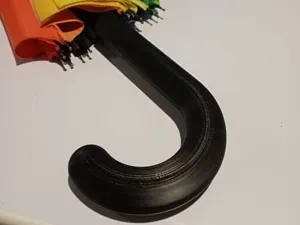

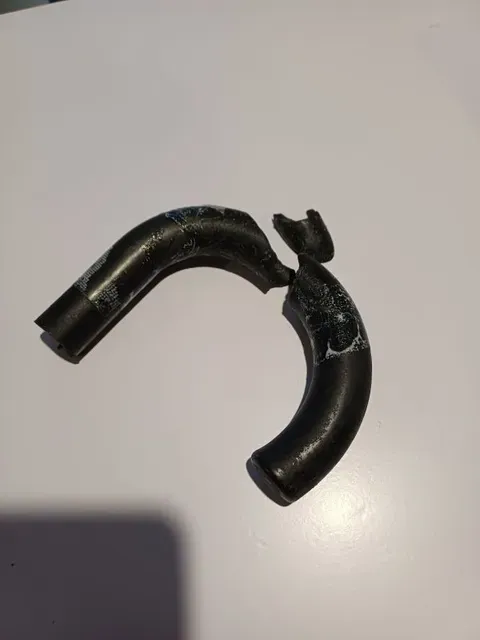

The handle broke on my umbrella, so I decided to design and print a quick replacement.

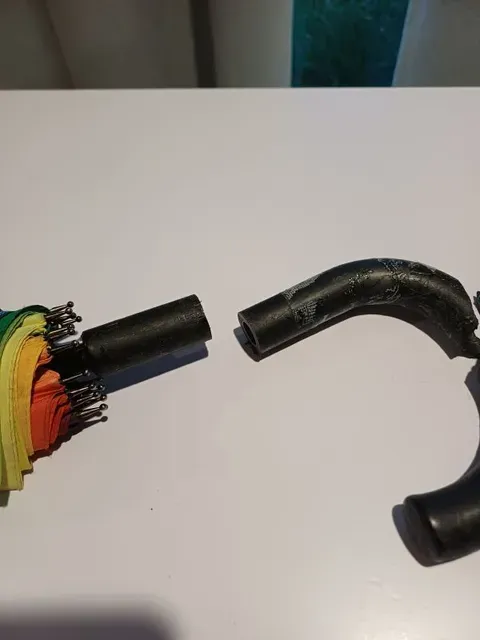

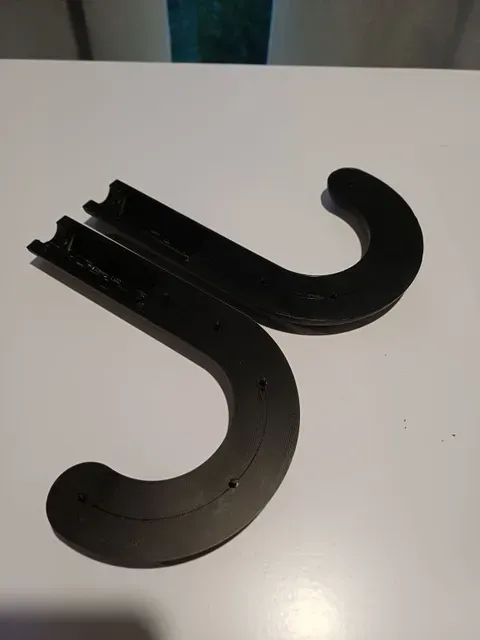

The two halves are a mirror image of each other so they fit perfectly together. Firstly I hack-sawed off the broken part leaving about 60mm of the old handle still attached. Then designed a piece to fit over that, which looked like the handle of an umbrella, then created a mirror image.

There are 5 pins included for alignment purposes when gluing it together.

This model is probably of no use to anyone else, but thought I would share just on the off chance :)

For reference, the remaining handle is 24mm diameter, and the shaft of the umbrella is 14mm, as mentioned previously, there is 60mm left of the old handle to attach the new one.
