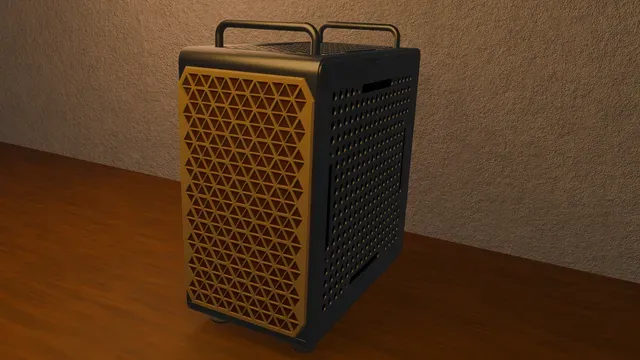

Kumiko Front Cover for Cooler Master Qube5 40

This 3D model is a custom Kumiko-style cover panel designed for the Cooler Master Qube 540 . Inspired by the video from “Paper View” on YouTube and the creative resources from KumikoDesigner.com , the project brings traditional Japanese Kumiko aesthetics into modern PC modding.

The file includes all tile patterns available on KumikoDesigner.com , so makers can freely combine and create their own personalized designs. This flexibility allows each build to be unique, while still honoring the elegance of Kumiko craftsmanship.

For assembly, here is a list of the required number of copies per tile model (fill in as needed):

Top Panel: 1 copy

Middle Panel: 6 copies

Bottom Panel: 1 copy

Frames: 1 copy each

Parallelogram Backplate: 18 copies

Mid Hex Backplate: 6 copies

Hex Backplate: 2 copies

Hex Backplate 1-5: 8 copies each

(Or print the .3MF files if you have a Bambu).

Assembly note: All pieces are designed to be press-fit . The Backplate 1 to 5 must be aligned correctly during Assembly to ensure proper functionality and a secure hold. If you notice that the pieces do not fit properly, adjust the horizontal expansion parameter in your slicer until they snap into place smoothly.

My printer parameters:

Layer height: 0.2 mm

Infill: 20 %

Print speed: 200 mm/s

Supports: No

Material: PLA/PETG

Wall thickness: 0.4 mm

The total print is around 8 hours and 200g

If you enjoy this design and want to see more creative mods like this, please leave a like — your support helps bring more ideas to life!

👉 And if this project reaches 200 likes , I will start working on the S ide Panel model and the IO-compatible Top and Bottom Plate to complement the Qube 540.

I will be glad to see your Makes, Thanks, and good printing
