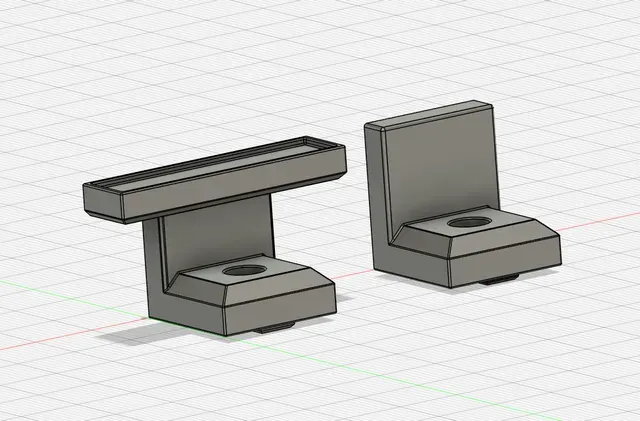

Voron 2.4 Bedstops with Silicone Nozzle Brush Mount

🧰 Nozzle Brush Bedstop + Bedstop

A compact set of parts that combine a silicone nozzle cleaning brush with a bedstop, plus a matching bedstop for the opposite side.

✅ Compatibility

• Tested on LDO Voron 2.4 (350 mm)

• Should also fit other printers using 2020 extrusions

✨ Features

• One bedstop securely mounts a Bambu silicone nozzle brush for nozzle cleaning while acting as a bedstop

• The second bedstop functions as a simple stop for the opposite side

• Compact footprint, quick to print

• No supports required — prints flat on its back

🖨 Print Settings

• Material: ABS or other heat‑resistant filament

• Layer height: 0.2 mm

• Infill: 40% or higher

🔧 Assembly Instructions

1. Print both bedstops.

2. Glue the silicone nozzle brush onto the top of the brush bedstop.

3. Mount each bedstop to the 2020 bed extrusion using one M3×8 screw and one T‑nut.

📝 Notes

• Brush not included — designed for standard Bambu nozzle brushes (38x8mm)

• File names follow the format: BedstopXXmm → total holder height above extrusion, BrushYYmm → brush position. (additional heights available on request)

This part may not be suitable for all printer setups. Incorrect installation or misuse could cause the printer to crash, collide, or damage equipment. The designer accepts no responsibility for any damage to machines, property, or injury resulting from use of this part.
