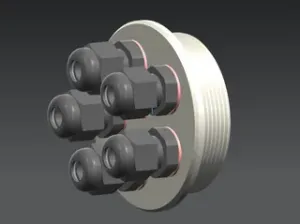

PG48 Blind Stuffing-Adapter to 5xPG9 Cable Gland/ PG48 Blindstopfen-Adapter auf 5xPG9-Kabelverschraubung

PG48 threaded blind stuffing to close unused PG48-openings in housings. Adapter for (1-5)xPG9 cable glands for smaller diameter wires. Unused PG9-openings can be closed with PG9 blind stuffing with PG9-thread.

[1] Thread types: PG thread (PG48, PG9)

[2] Diameters for openings: Diameters for PG48 opening: a) threaded hole: 57.8mm / PG thread b) drill hole without thread: 59.3mm Diameters for PG9 opening: c) threaded hole: 13.9mm / PG thread d) wire diameter: 8.0mm

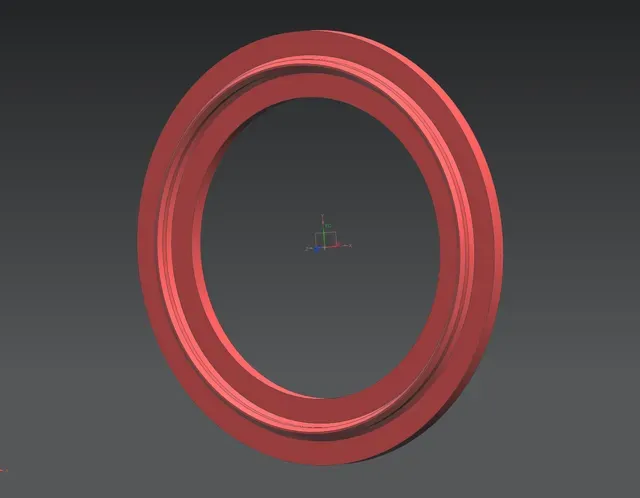

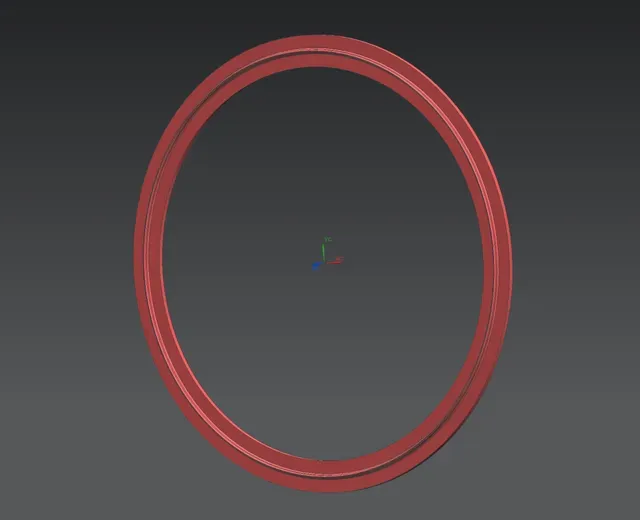

[3] Sealing: An optional TPU-sealing model file is available for PG42. An optional TPU-sealing model file is available for PG9.

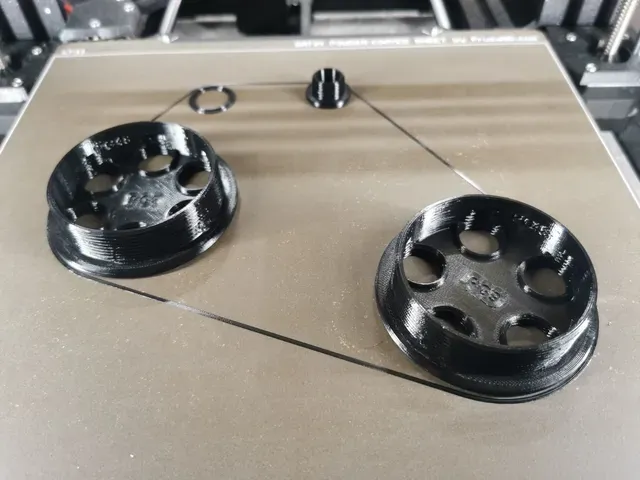

Print Material: PETG (blind stuffings, nut), TPU 95A (sealing) Supports: not required Brim: not required Serial printing (part by part) for better thread quality.

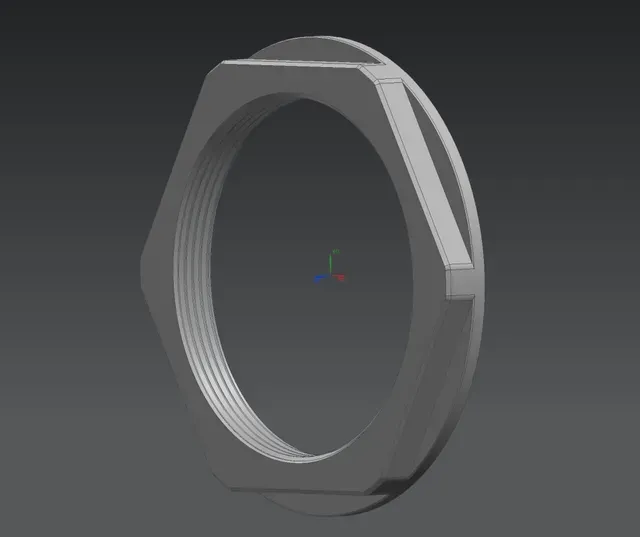

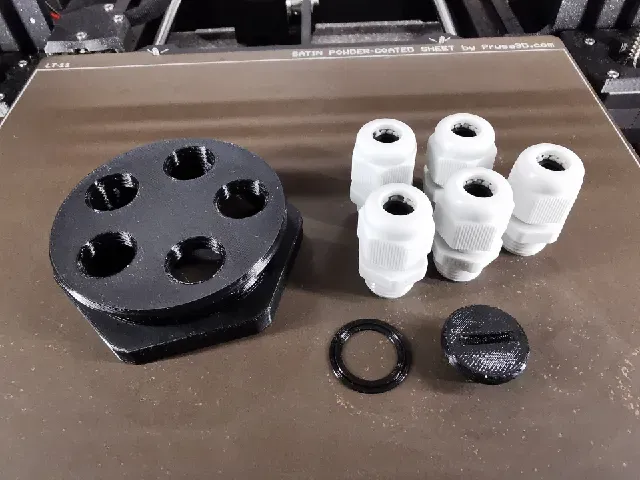

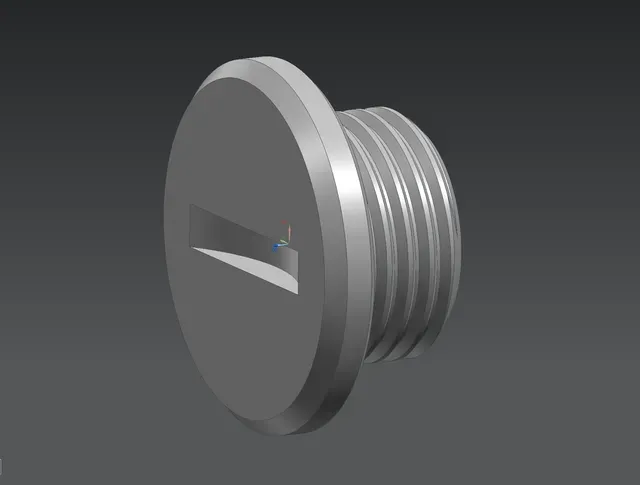

Materials 1x PG48 adapter (PG48 thread) [PG48_BlindStuffing_PGthread_to_5xPG9_PGthread_v00.stl] 1x PG48 blindstuffing nut (PG48 thread) [PG48_Nut_PGthread_v00.stl or [PG48_Nut_PGthread_v10.stl] (1-5)x PG9 cable gland (PG9 thread) [see link] (4-0)x PG9 blind stuffing [PG9_BlindStuffing_PGthread_v00.stl] (4-0)x TPU sealing PG9 (optional) [PG9_TPU-Sealing_v00.stl]

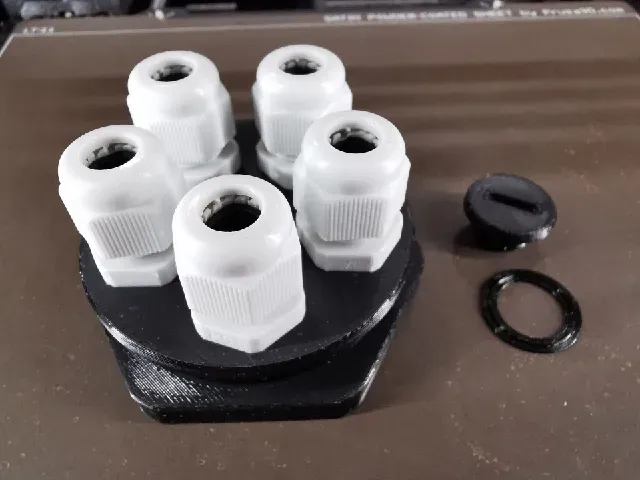

Assembly [1] PG9 cable gland pre-assembly Screw PG9-cable glands (PG9-thread) into the PG9 openings of the adapter. Close unused PG9-openings with PG9-blind stuffings. Use optional TPU PG9-sealings if necessary. [2] PG48-adapter assembly Place the pre-assembled P48-adapter (blind stuffing) in the PG48 opening and secure it with a PG48 nut. Optionally place PG48 sealing on the PG48-adapter before assembly. [3] Cable assembly Guide cable through PG9 cable gland and fix cable by fastening the corresponding cable gland nut.

Hint : Apply some silicone grease on the thread, so it can be easily be assembled and disassembled. (Without grease, the thread tends to wind on and off somewhat “sticky”.)
