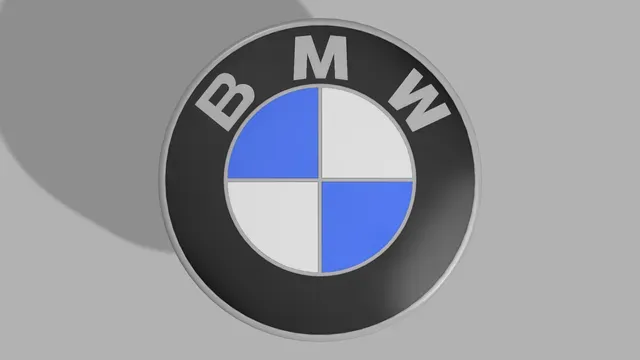

BMW Badge 78mm

Here is another BMW badge, this is a slight redesign of the previous badge. This badge has a diameter of 78mm and is designed to replace the trunk badge of a BMW E91 , I am not sure if it will fit other models as well. As far as I know the trunk badge on the E90 is 74mm, so this version will probably not fit. I will be adding a 74mm badge in the future as well.

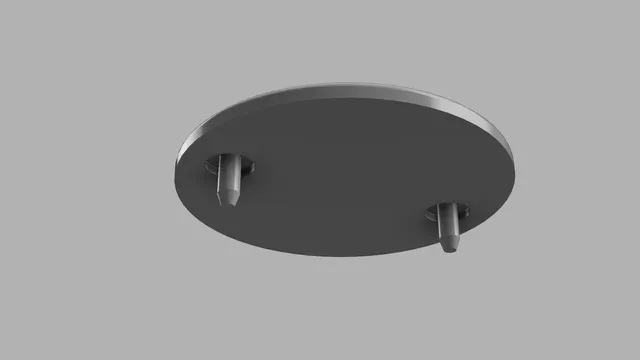

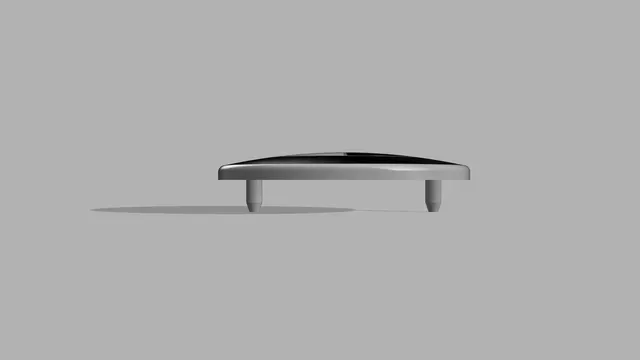

The model is intended to be printed with a single extruder , no MMU required. The parts are designed to print, assemble and glue at the end. The holder is the only part that requires support material on the print bed, all of the other parts don't require any supports. I have printed the parts at a layer height of 0.05mm in order to achieve a smooth surface of the dome, but it can be printed at any layer height, although you might have to sand the surfaces.

Color suggestions:

- Holder - silver or white - Outer piece - black - Inner piece - silver or white - Center piece 1 - white - Center piece 2 - black or blue - Center pieces B1 & B2 - black Other versions:

BMW Badge 82mm

Badge grommets

Have fun printing it!
