Metric Screw & Hex Nut Sorting Jig

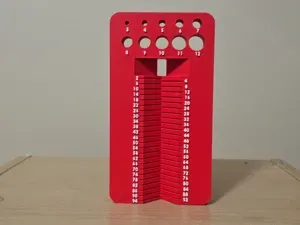

A 3D-printed jig for sorting, measuring, and identifying metric screws and hex nuts.

Screw Measurement: Measure metric screws for length and diameter. Wood screws can be measured in the groove liner or estimated using the side ruler.

Nut Gauge: Backside features a metric hex nut gauge with a fit tolerance of 0.05 to 0.1 mm

Embossed Text: I changed the filament color for the contrasting text layer

Debossed Text Option: Optional verison with debossed labels for easier printing

Designed for 3D-printing without support
