3D Printer Front Camera Mount for Artillery (EVNOVO) X1 Sidewinder

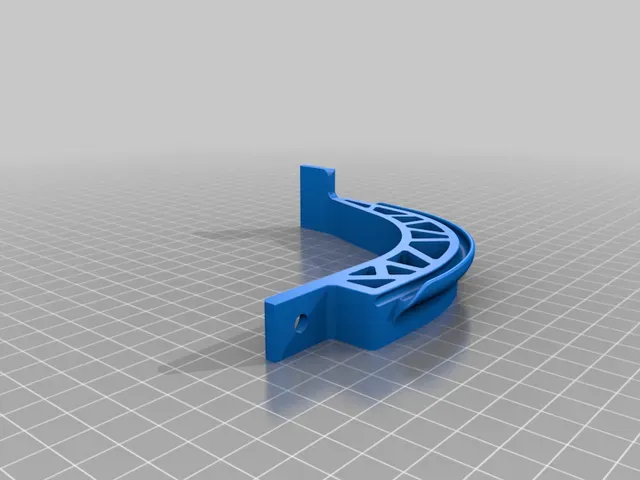

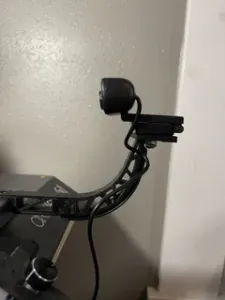

I created this universal camera mount to sit on the front of my X1 Sidewinder base using the existing hex screw located in the centre of the Y-axis rail. I have two other versions (see below) that this is based off of. With this version, I increased the length of the neck on the Y axis to allow the bed full travel without hitting it. I also made the cord channel a bit wider and more sculpted to make it fit thicker cords more easily.

It works great with any of these style of HD webcams and Octoprint: https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA

I recommend printing it with PETG. I use the Overture brand. This stuff is excellent https://www.amazon.ca/gp/product/B07HGXGKQD/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=skartzamzn01-20&linkId=38e28b287de29eaf54a0c02f7b80da57&language=en_CA and I've been using it almost exclusively now for several months with no issues. The model has the cord track on the left side, but if you want it running on the right simply mirror the model in your slicer.

I also created other versions. One for side mounting on the X1 Sidewinder ( https://www.thingiverse.com/thing:4064724/ ). And one for the CR-10 or any other printer that uses 2020 or 2040 extrusions for the frame ( https://www.thingiverse.com/thing:4064715 )

Features: Sturdy design Built-in Cable Management Track

If you found this useful, please consider a SMALL DONATION @ https://www.paypal.me/shanekartz to help cover the time of design.

Please Post your Makes. I would love to see how they turn out.

Thanks, Enjoy!

Print Settings

Printer:

Artillery (EVNOVO) X1 Sidewinder

Rafts:

Doesn't Matter

Supports:

No

Resolution:

.28

Infill:

20%

Filament: Overture PETG

Notes:

Put a good wide brim around it of at least 10mm and print at 245C and 85C respectively to minimize warping.

How I Designed This

Designed in Fusion 360.
