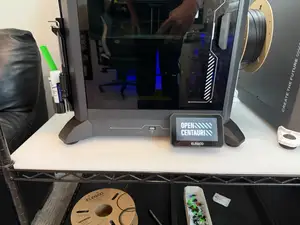

Elegoo Centauri Carbon Squash Ball Feet

Enhance your printing experience with these Low-Profile Squash Ball Dampening Feet specifically designed for the Elegoo Centauri Carbon .

As high-speed printing often leads to unwanted desktop resonance, these feet are engineered to decouple your printer from the surface, significantly reducing vibration transfer and mechanical noise.

Key Features

- Discrete Design: Crafted to be as unobtrusive as possible, maintaining the sleek look of the Centuari Carbon without adding unnecessary height or bulk.

- Enhanced Stability: Provides a wide, secure base that utilizes the natural dampening properties of standard squash balls (Double Yellow Dot recommended for best results).

Recommended Print Settings

While these were tested and photographed in PLA-CF for a premium matte finish, they are compatible with any rigid filament (PLA, PETG, or ABS).

- Walls: 3 perimeters

- Infill: 15% (Gyroid recommended)

- Supports: Tree with Top Z Distance set to .26mm

Files Included

- SBF: Print 3 of these for the front and side corners.

- SBFPS: Print 1 of these for the back corner to accommodate the power cable entry.

Recommended Parts

Im using the Dunlop Pro squashballs (the ones with 2 yellow dots on them) and getting good results. your mileage may vary with softer squashballs.
