Case for Wemos ESP32 D1 Mini

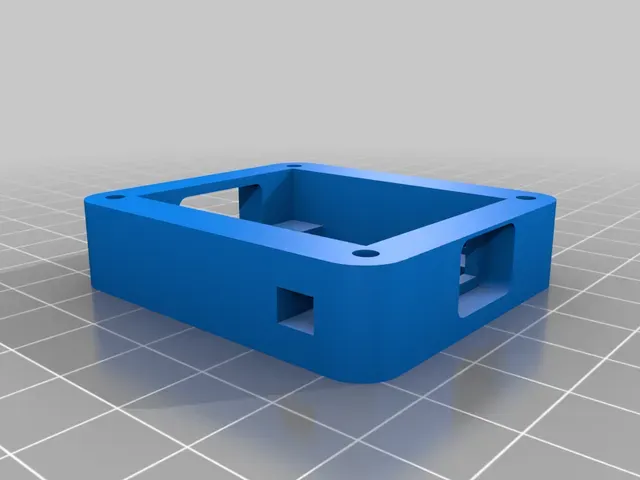

I have designed a small, handy case for the WEMOS ESP32 D1 Mini version.

Board just snaps in place (start with the USB-port when inserting)

You need 4 M3x6 screws to fix the lid.

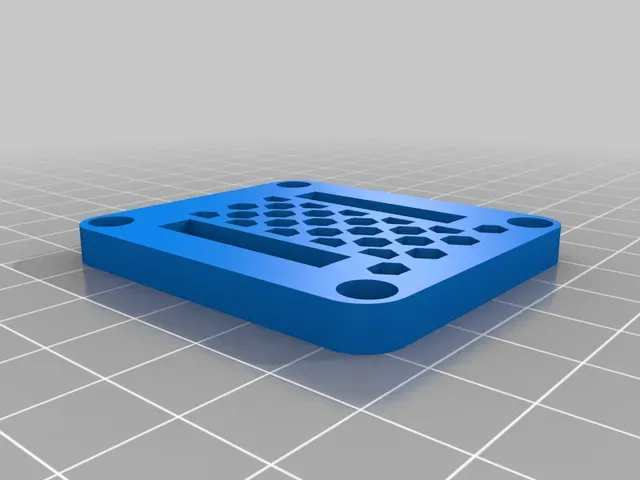

There are two versions of the lid:

Version 1 for directly soldering wires onto the board without pins and getting the wires out through the sidewall.

Version two to use Dupont cabels to connect through the lid onto the board.

Case enables access to the resetbutton and a view to the LEDs

OpenSCAD-files included as always for easy customization.

Have fun!

Cheers

Armin

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

0,2

Infill: 15

Filament: Noyes PLA anthrazit

Category: Electronics
