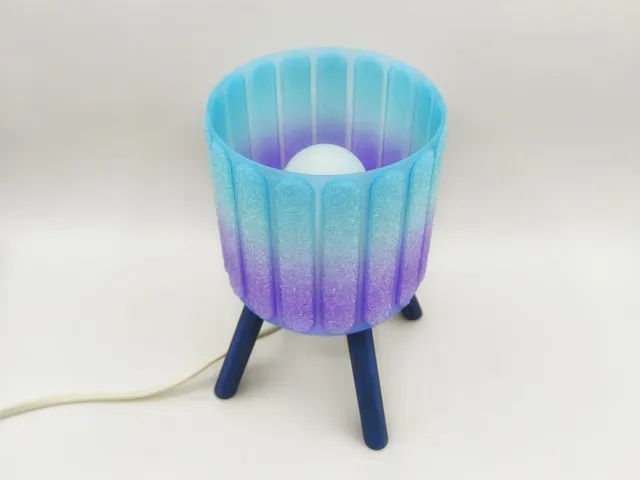

Billa - Fuzzy Table Lamp

Billa is a table lamp composed of a lampshade and a base, held together by two threaded rings and designed for an E14 threaded sleeve lamp holder. The threaded rings are included with the model and are printed as part of the project.

To print Billa, in addition to the included 3MF printing profile, you can follow these steps:

- Import into the slicer the lampshade model, choosing between the two available versions

- Add, as a part on the same lampshade model, the file “Fuzzy effect for Lampshade” corresponding to the previously selected lampshade version

- Recommended printing parameters:

General

- Nozzle 0.4

- Layer height 0.2

- Wall order inner/outer/inner

For the lampshade

- Infill density 100%

For the overlaid Fuzzy effect

- Infill density 0%

- Wall loops 1

- Enable Fuzzy

- Fuzzy skin on all walls

- Fuzzy point distance 0.8

- Fuzzy thickness 0.8

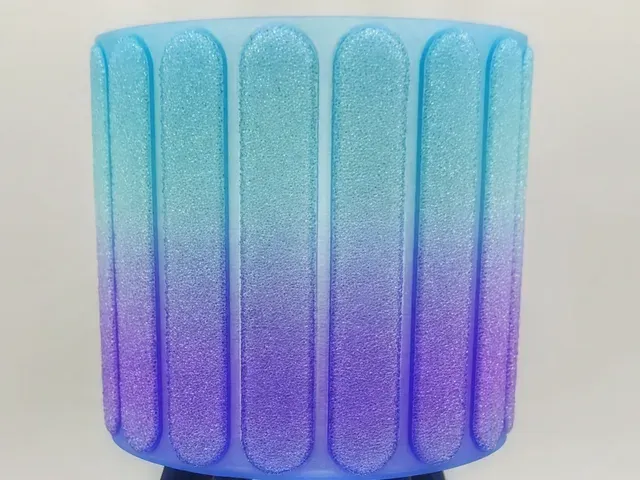

To achieve the visual effect shown in the images, eSUN PLA Clear Rainbow was used. Billa includes two fuzzy-effect lampshade variants and two bases . To complete the lamp, you need to add an E14 threaded lamp holder with power cable .
