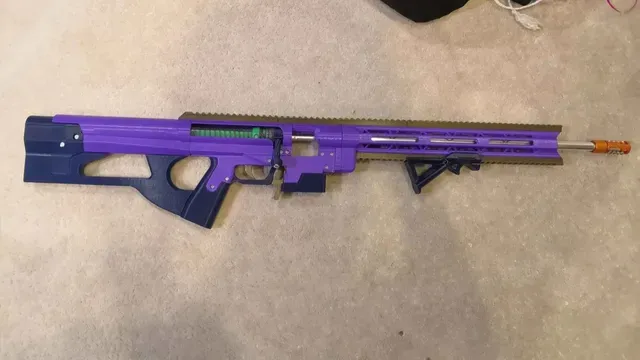

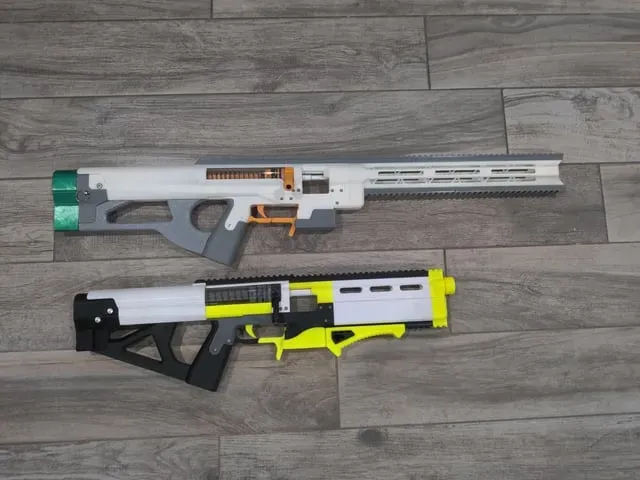

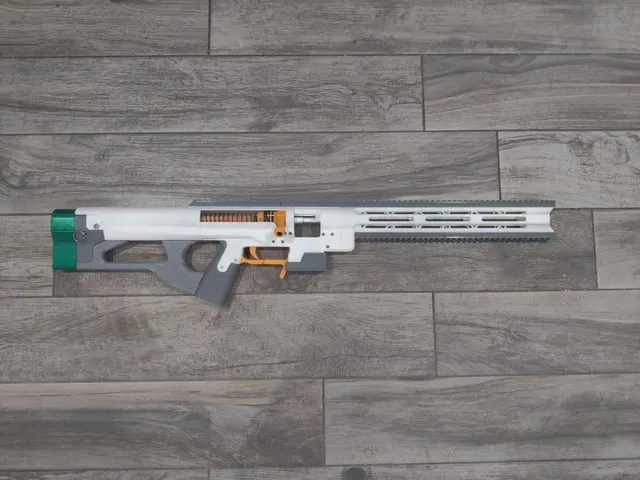

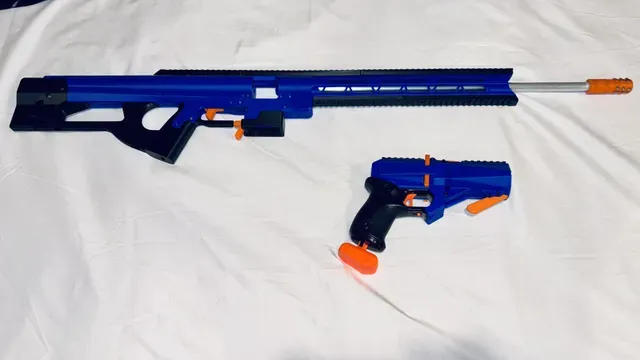

CynthiAWP - Long Draw High Power Cynthia

The CynthiAWP is a closed-bolt long-draw variant of Sillybutts' Cynthia, capable of 300 FPS on a full-length K25 spring!

Stats and Performance:

- +35mm draw length VS Cynthia

- +55mm blaster length VS Cynthia

- Closed-bolt design

- Fits full-length springs

- Rigid, rattle-free construction

- ~200 FPS capable with 788 and 18 inch .509

- ~300 FPS capable with K25 and 22.5 inch .509

Bill of Materials/Sellers:

Bill of materials: https://docs.google.com/spreadsheets/d/1iqQNglQRROI4k6thqBFehN5KLgvnAtP4aFLzYeaawHk

Hardware sellers:

- Out Of Darts: https://outofdarts.com/products/cynthia-hardware-kit

- (full kits available via special-order modifications to Cynthia kit. ~$10 upcharge.)

- Silver Fox Industries*: https://silverfoxindustries.shop/products/cynthia-hardware-kit

- A full list of sellers, including more readily available kits for non-US sellers, is available at https://www.stuffbysilly.com/wheretobuy .* **

*Ability of this shop to make full kits via special-order modifications is currently unknown, as is price increase from doing so.

**Kits and/or parts from this shop may not be hobby-standard and/or may contain metric hardware. CynthiAWP is not designed around metric hardware and compatibility is not guaranteed.

Part Options:

- Left and right handed bolt variants

- Multiple grip options

- Multiple trigger options

- Multiple mag release options

- Multiple bolt lengths and shapes

- Optional thumbhole stock

And coming soon:

- Alternate shroud options

- Multiple buttplate lengths and sizes

- Rear bottom rail option for mounting monopods

- Dovetailless MidBlock and BackBlock for super fast maintenance and assembly

- A true AWP-style bodykit

- Custom embossed, engraved, and/or multimaterial aesthetic designs

Print Information:

Currently, only the modified parts for the CynthiAWP are contained in the fileset. (Permission from Sillybutts to provide the unmodified essentials from the Cynthia fileset on this page for ease of access is currently pending, as is permission to include all required parts in a .3mf file for ease of printing.)

For the modified parts:

- 100% infill, 8+ walls - PlungerRod

- 100% infill, 5 walls - BoltBase

- 100% infill, 5 walls, brim - MidBlock (only necessary for the first 33mm of the print - for 33mm and above, use 20%)

- 20% infill, 5 walls, brim - BackBlock, ShroudFront, ShroudMid, ThumbholeStock, all Rails (use mouse-ear brims for Rails if available)

- 20% infill, 5 walls - all other parts
