MiniPC Frame Clips for Anycubic i3 Mega and Monoprice Maker Select (Octoprint Server)

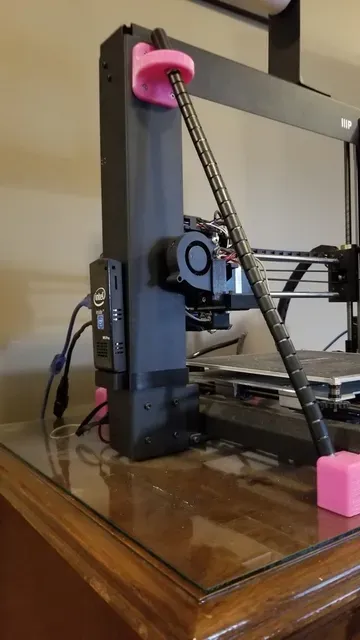

These are frame clips to attach a W5 Pro Mini PC to the side of a 3D printer. I've included clips for the Anycubic i3 Mega and the Monoprice Maker Select. The clip is designed in a way that the Mini PC can be removed from it easily enough if you need to temporarily hook it up to an HDMI monitor or something. (It doesn't fit overly tight)

The i3 Mega clip should be compatible with:

Anycubic i3 Mega

Anycubic i3 Mega S

Anycubic i3 Mega Pro

Anycubic i3 Mega X

The Monoprice Maker Select clip should be compatible with:

Monoprice Maker Select

Wanhao Duplicator i3

Cocoon Create

... As far as I know. (Tested with Monoprice Maker Select V1 and Anycubic i3 Mega S)

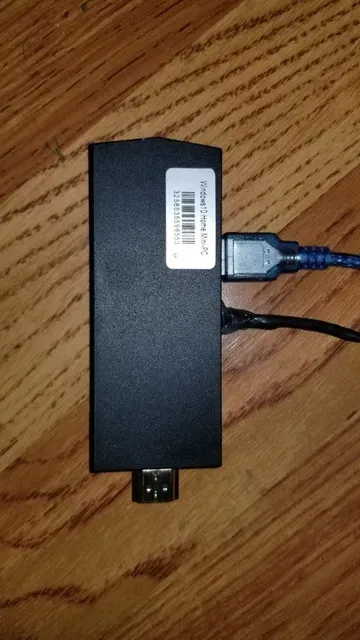

I took one of these Mini PCs, and loaded Ubuntu and Octoprint on it, and it worked great. I do NOT recommend this if you are a beginner, however, because the "Cherry Trail" chipset used on this PC was a real pain to get working properly... especially the wireless.

Note that due to the symmetry of this design, it should work on either the left or the right side of your printer.

Print Settings

Printer Brand:

Anycubic

Printer:

All-metal Mega

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

40% Gyroid

Filament: filaments.ca Econofil PLA

Black

Category: 3D Printer Accessories

Check out my other Anycubic i3 Mega accessories at: https://www.printables.com/social/55222-tyler/collections/95780

If this design was useful to you, please post a make!
