'17-'23 KTM Headlight Frame for Diode Dynamics LED SSC2

Change Log

V3

- Lower light bolt hole moved forward to allow for greater range of motion for lower light - Reinforced the slot in the frame that interfaces with the lower headlight mount of the headlight mask. V2

- Overhangs improved for more reliable printing - Modeled-in brim to reduce warping when printing in ABS - Added relief in frame to allow for 8mm socket to counter-hold nylock nut for light mount Required Hardware:

- 4x M3x~5mm heatserts - 4x M3x8mm stainless steel countersunk bolts - 2x M5x5 to 8mm heatserts - 2x M5x10mm stainless steel bolts - 1x M5x25mm stainless steel bolt - 1x M5 standard nut - 2x M5x60mm stainless steel bolts - 2x M5 nylock nuts - 4x M5 nylon washers Wiring:

KTM Wiring:

- Brown - 12v Negative/Earth - White - Low Beam - Blue - High Beam - Green - Parking Light KTM connector to mate to factory wiring: 4 position MTW - Hitachi Type Connector for .110 - 2.8mm Terminal

Recommended upgraded connector: (requires specialized crimping tools) Sumitomo 4 pin MT .090 - 2.3mm sealed connector

Lights:

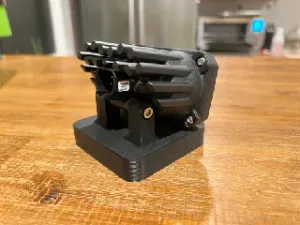

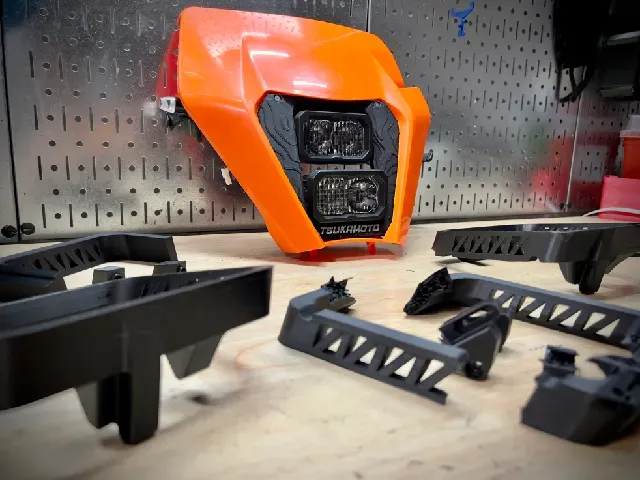

This LED headlight frame uses 2x Diode Dynamics SSC2 LED light pods. I chose the SSC2 Pro lights—one with a SAE driving optic and one with a “combo” optic.

- “Pro” power consumption (per light): Main Beam: 25.6w, Backlight: 0.7w - Diode Dynamics - SSC2 Pro Pod (No affiliation or monetary gain) - “Sport” power consumption (per light): Main Beam: 7.7w, Backlight: 0.7w - Diode Dynamics - SSC2 Sport Pod (No affiliation or monetary gain) Note: If you have a carbureted bike, consider if the stator output is enough to handle the output of the lights. Baja Designs published an excellent chart that lists the outputs of each model & year.

Fitment:

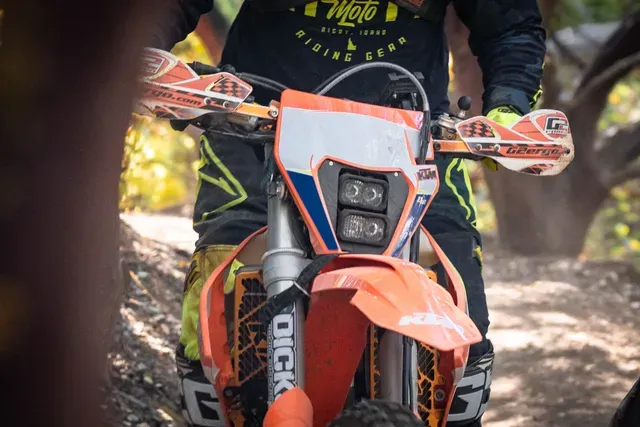

This works with 2017 through 2022 (competition)/2023 (enduro) KTM dirt bike headlight masks.

It is possible to upgrade a ‘12-’16 KTM with the ‘17-’23 headlight mask and fender, but be sure to do your own research to confirm fitment before attempting.

Printing tips:

- ABS, PA, PA-CF/GF recommended. Scaling the model as needed on the X, Y, and Z axis may be necessary, depending on your printer and filament. I recommend dimensional calibration on smaller objects to dial in the scale percentage for your filament. - For strength, ≥4 perimeters and ≥30% infill is recommended - Orient the headlight frame face-down on the build plate. Some supports required. - Add a brim to minimize warping to both the faceplate and the frame.
