Nintendo Switch Dock Alternate V1

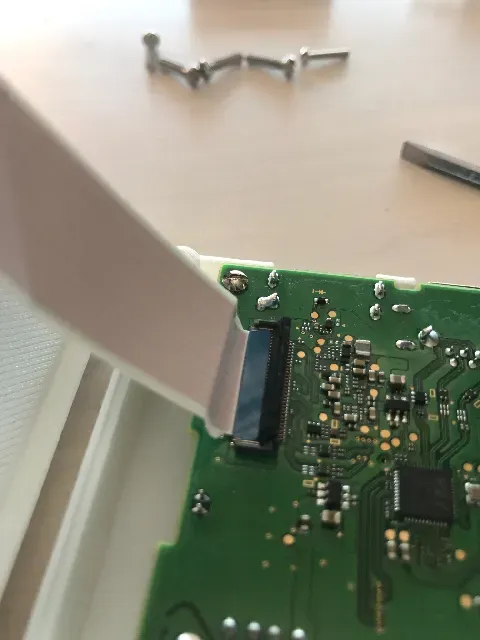

WARNING: I am not responsible if you destroy your dock. For this print to be useful the original dock has to be dismantled. This will most likely void any warranty you may have on it. Please be sure you know what you are doing before attempting this project.

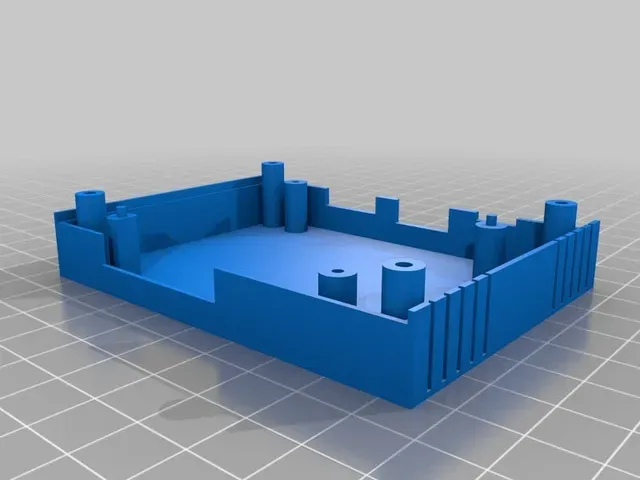

UPDATE 1: Added ventilation slots to the back. UPDATE 2: Added SwitchHubTubeFlex.stl so you can print without the space taken for the felt.

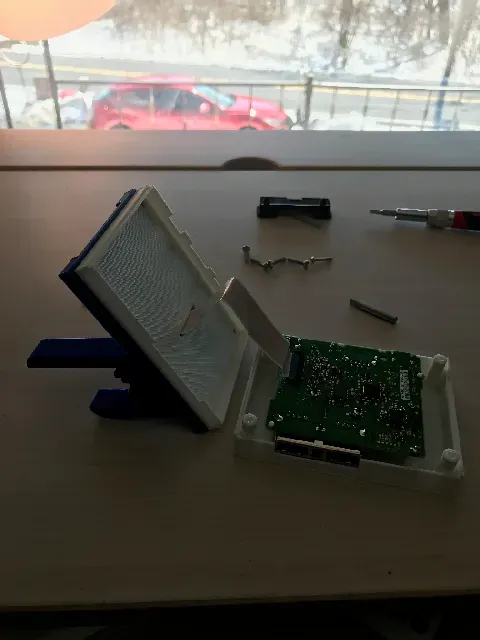

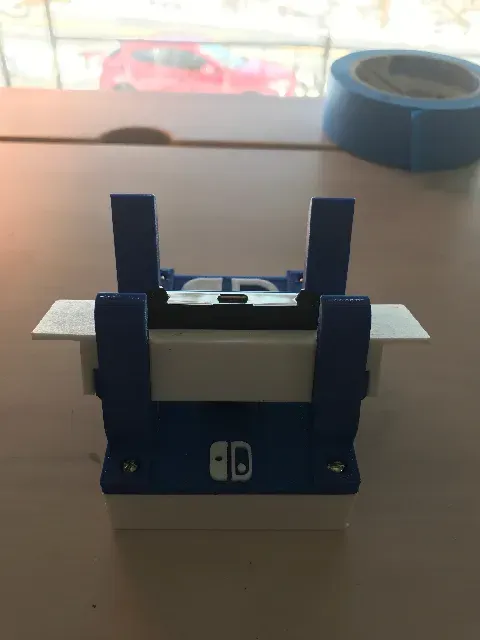

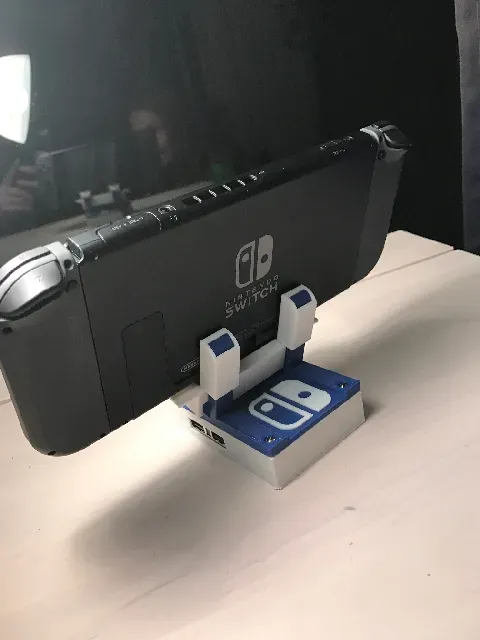

This is my design for an alternate Nintendo Switch dock. It uses all the parts from the original dock. I was very disappointed with the one provided by Nintendo.

Note: I still have to figure a good way to integrate the LED light.

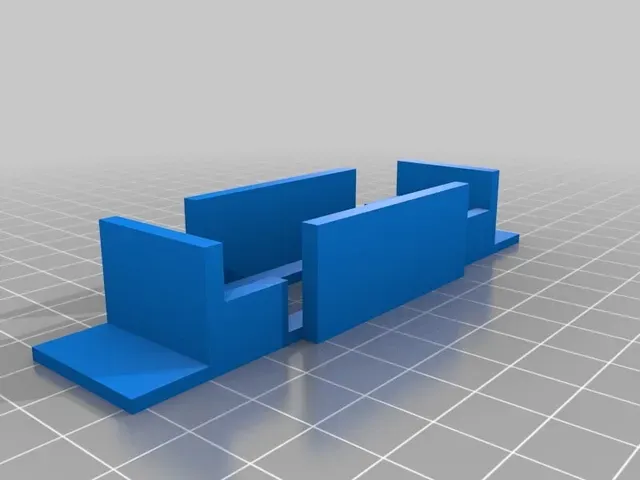

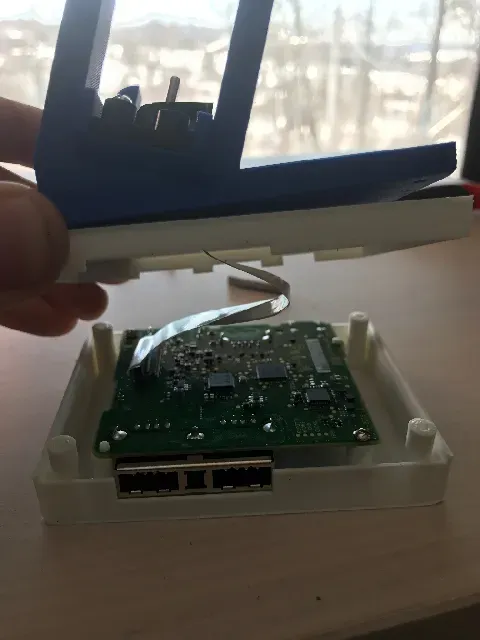

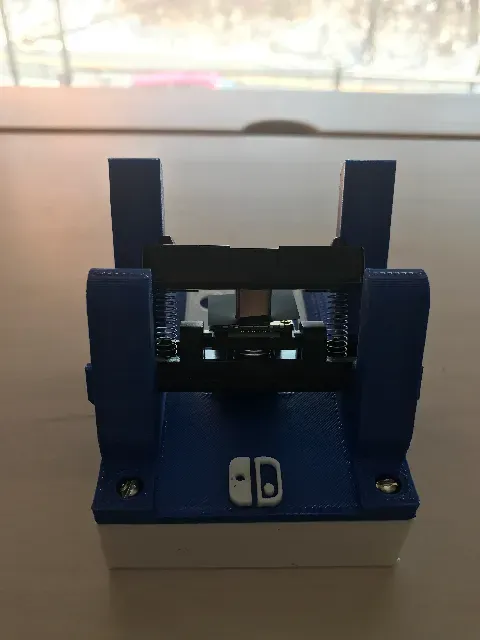

Instructions: Print all parts and assemble. Just need 8 machine screws and all the parts from the original Switch dock.

4 - 12mm (Length) x 2.75mm (Thread Diameter) 2 - 12mm (Length) x 2.1mm (Thread Diameter) 2 - 6mm (Length) x 2.1mm (Thread Diameter) Piece of 1mm thick felt

Print instructions

Category: Video Games Print Settings

Printer Brand: MakerGear

Printer: MakerGear M2

Supports: No

Resolution: 0.2
