Anycubic i3Mega HDMI 7" Display Housing

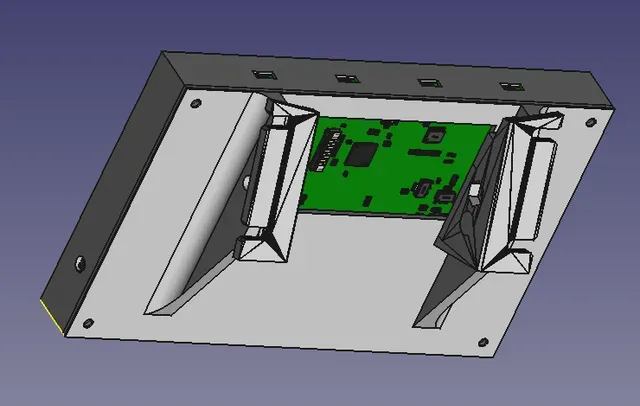

This Model provide the ability to mount a 7Inch HDMI touch display from mellow ( https://de.aliexpress.com/item/1005008090227343.html ) to a raspberry running the klipper firmware or octoprint.

The pushbuttons are exposed to be able to use them. I've modified the clamps for my need. With the holes initialy designed, the display will be to high and get in contact with the Y Carriage. For this Reason, i've lowered it down to get more space. For a propper mounting, you need to peel of the original Anycubic sticky cover to have the clamps sit tight to the screw terminals.

Please Note, the 3d Model which i've found at Mellows Github Page ( https://mellow.klipper.cn/en/docs/ProductDoc/Screen/fly_hdmi-lcd5/ ) are not fully represent the HDMI7 i've got from Aliexpress. So if you put in the display from the link above, it should fit in there. As Mellow mentioned in the description the FPC will fit to the mentioned host boards or SBC's, the standard raspberry pi DSI displayport will not fit straight away. For that reason i've used a HDMI and USB cable from Amazon used for FPV drones.

!!! IMPORTANT !!!

If you're using the USB and HDMI ports, you need to power the display via external source. I missed that and struggle several days with my printer stopping mid print (crash between 1min after boot up to 2h mid print) and beeing unresponsive even vis SSH. I've cut black and red from the USB cable and mount them to my external 5V/5A source mounted inside the Anycubic i3 Mega. This Powersupply provide power to the Raspberry Pi 3 b+ and the Display and the Printer is running fine for weeks now.
