Logitech B525 Camera Mount for Creality Ender 3 V3 SE

This design is based on a Raspberry Pi camera mount that I modified from Andy’s Y-axis mount for the Ender 3 V3 SE. However, once I started printing in an enclosure, the Pi camera began to overheat.

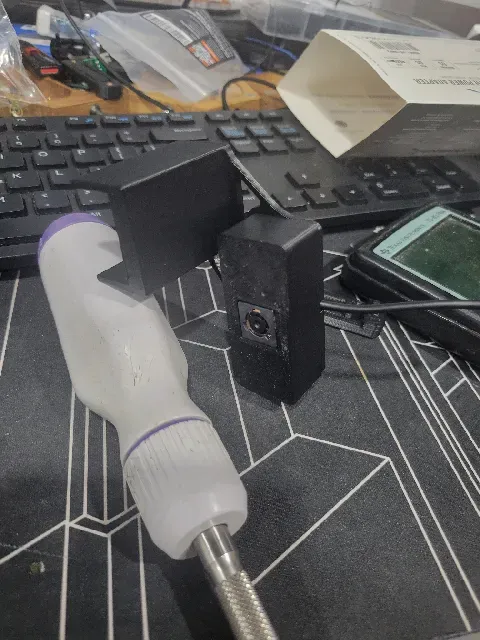

That led me to dig out an old Logitech B525 webcam I had in a box. I found E5150’s mount designed for the C270, C310, C510, and B525, and combined it with my modified mount. The result is a clean, stable setup with a great viewing angle.

For this model, I’m showing and using the E5150 B525 cover, but you can use any of their covers for the C270, C310, or C510 as well.

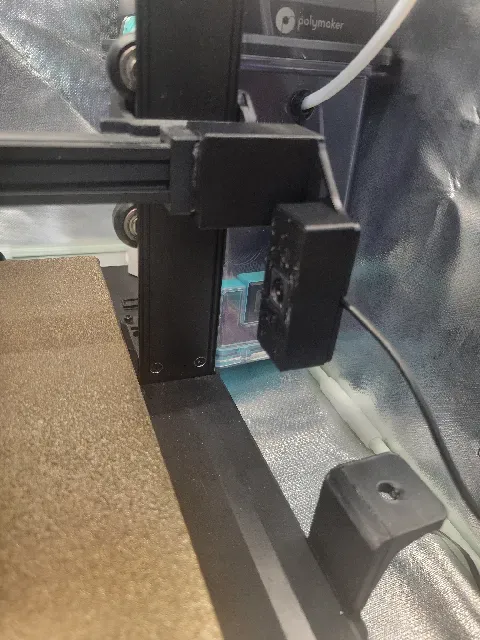

I use double-sided tape to mount it to the Y axis.

The View

Here are my Crowsnest settings

- [Ender3]

- mode: ustreamer

- port: 8080

- device: /dev/video0

- resolution: 1280x960

- max_fps: 10

- v4l2ctl: focus_automatic_continuous=0,focus_absolute=30

Fluidd Settings

Credits

This model is a remix of these designs:

- Base Mount: Modified from Andy's Y-axis mount for the Ender 3 V3 SE.

- Camera Housing: Uses E5150’s B525 cover (compatible with their C270, C310, and C510 designs).
