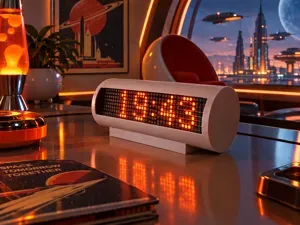

wledPixel: Smart WiFi LED Matrix Clock & Info Display

This is a printable enclosure for the wledPixel project - a powerful, open-source LED matrix display firmware that turns simple hardware into a smart home information center.

Features

- Smart Home Ready : Deep integration with Home Assistant and MQTT .

- Info at a Glance : Displays Wall Clock (NTP), Weather (OpenWeatherMap), and Sensor Configuration.

- Multi-Zone : Supports up to 4 independent zones for scrolling text, icons, and data simultaneously.

- Web UI : Fully configurable via a mobile-friendly web interface/Settings page.

- Hardware Support : Works with ESP32 or ESP8266 (Wemos D1 Mini) and standard MAX7219 dot matrix modules.

- Effects : Includes 30+ transition effects and custom fonts.

Bill of Materials (BOM)

To build this project, you will need:

- 3D Printed Case : (Files included in this download)

- Microcontroller : ESP32 DevKit V1 OR Wemos D1 Mini (ESP8266)

- Display : MAX7219 Dot Matrix Module (4-in-1 modules recommended)

- Wiring : Dupont cables

- (Optional) : DS18B20 temperature sensor

Firmware & Code

The firmware and full wiring diagrams are available on GitHub: 👉 GitHub Repository: wledPixel

(Please check the repository for the latest flashing instructions and wiring schemes).

Assembly

- Print the case parts (PLA/PETG recommended).

- Flash your ESP board using the instructions on GitHub.

- Connect the MAX7219 display to the ESP board (see wiring diagram in repo).

- Slide the electronics into the case and snap the cover shut.

- Connect to the "wledPixel" WiFi AP to configure your network.
